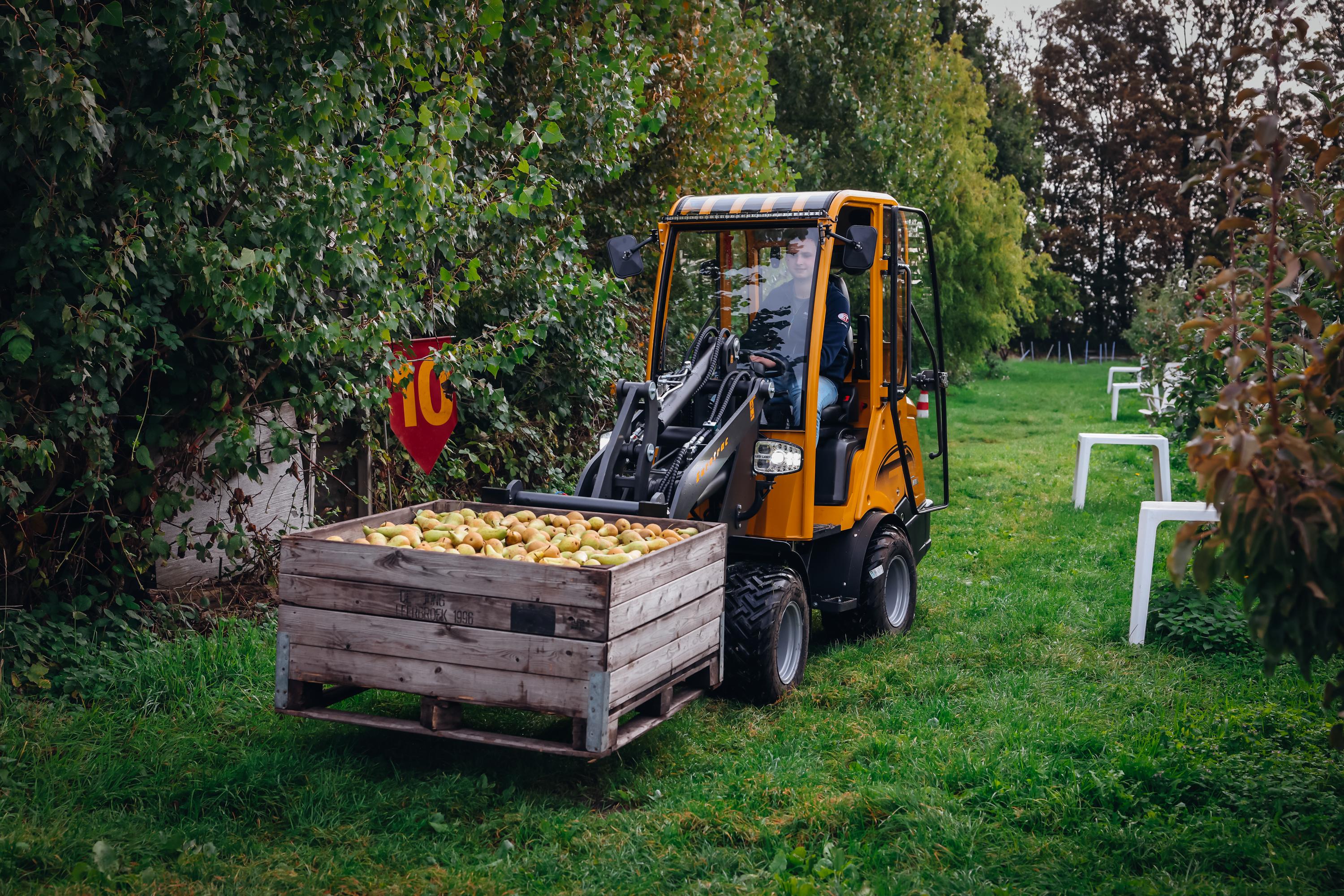

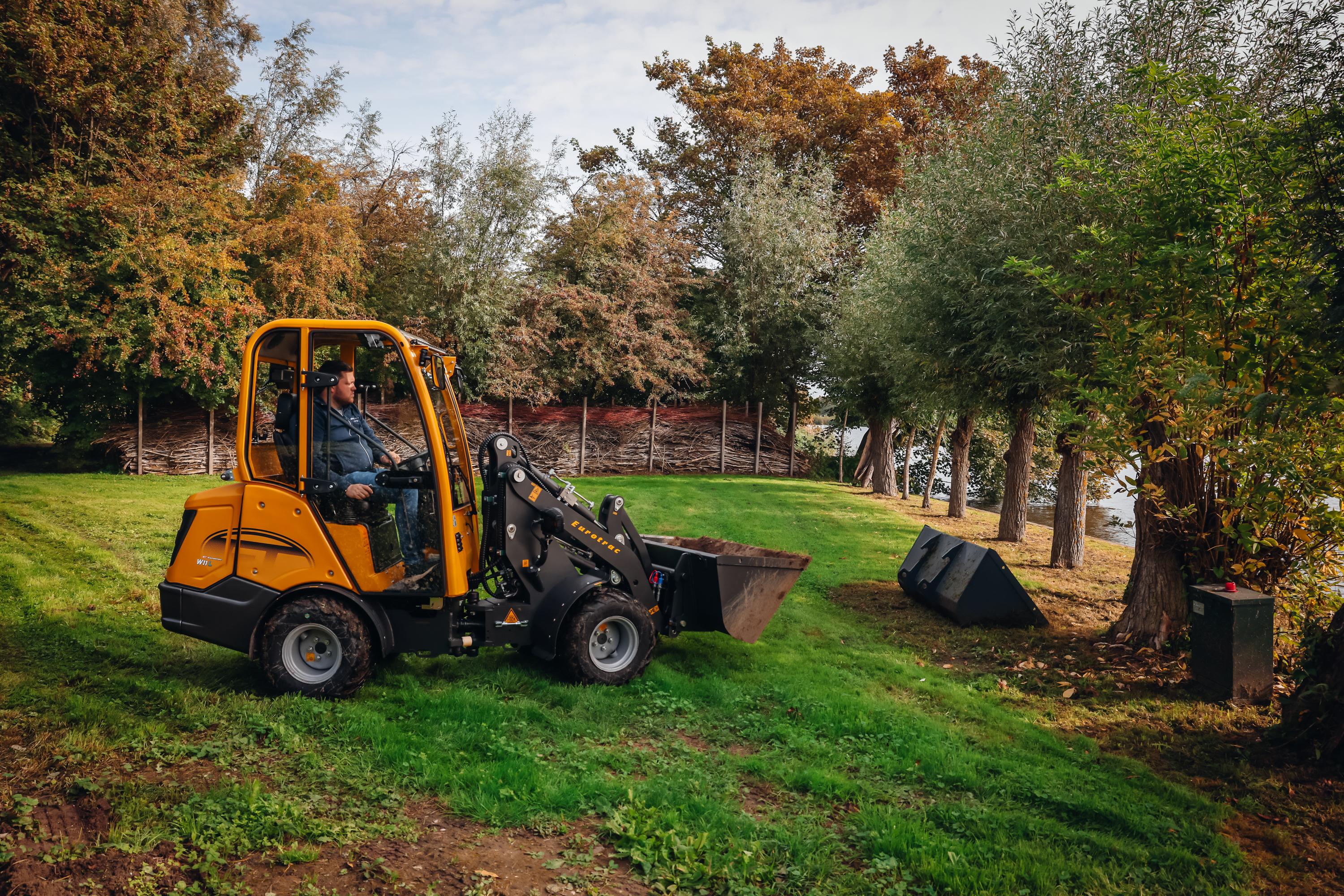

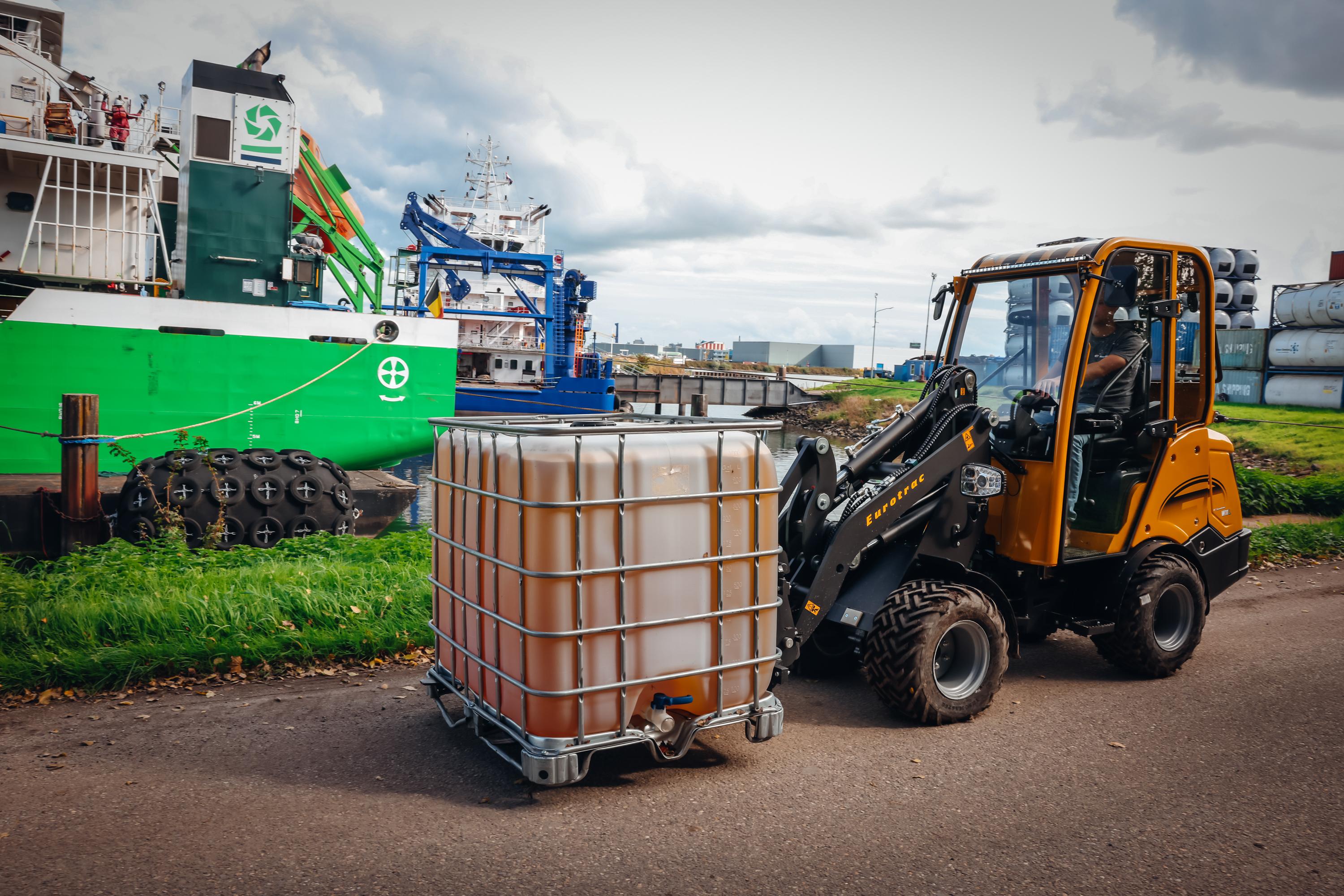

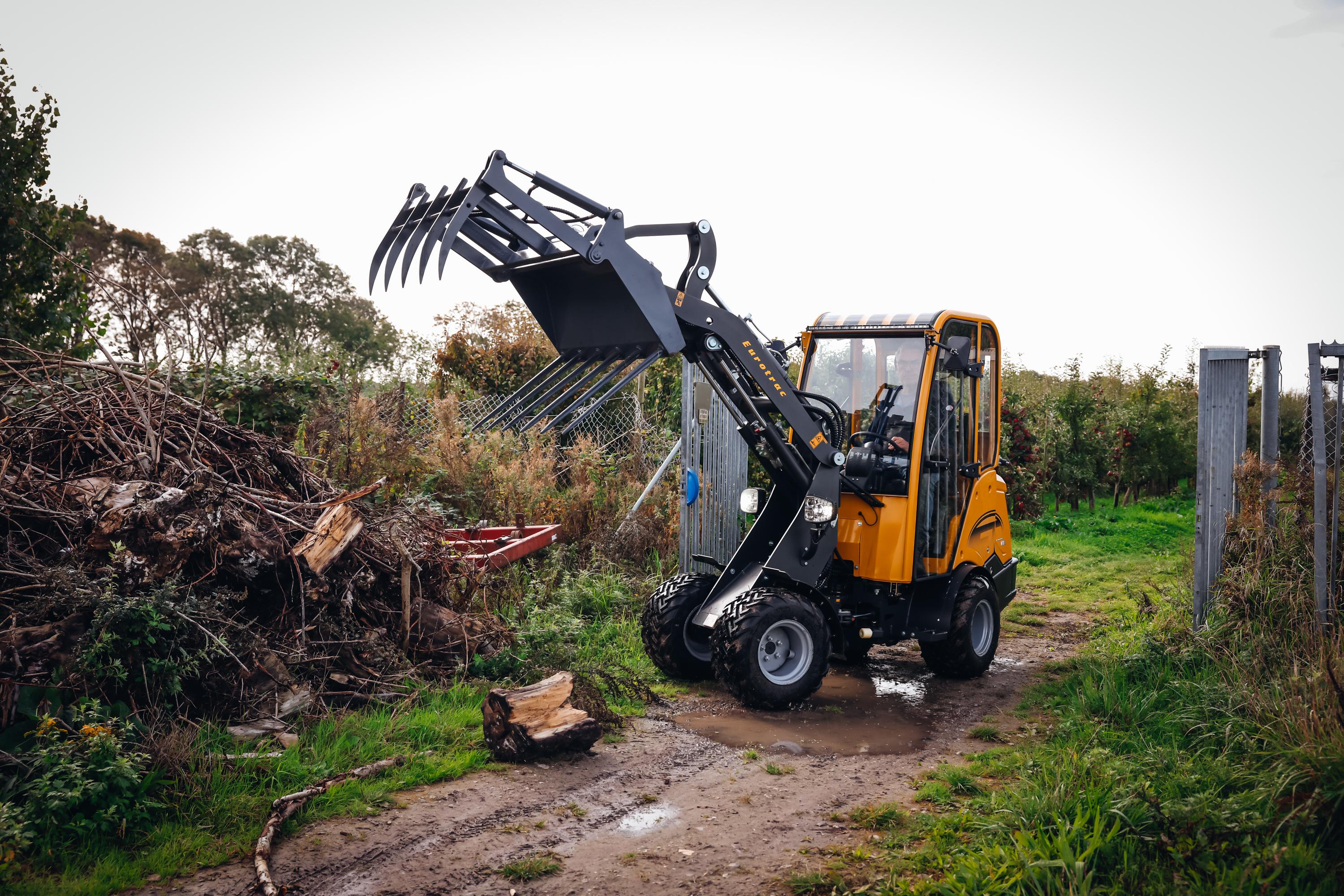

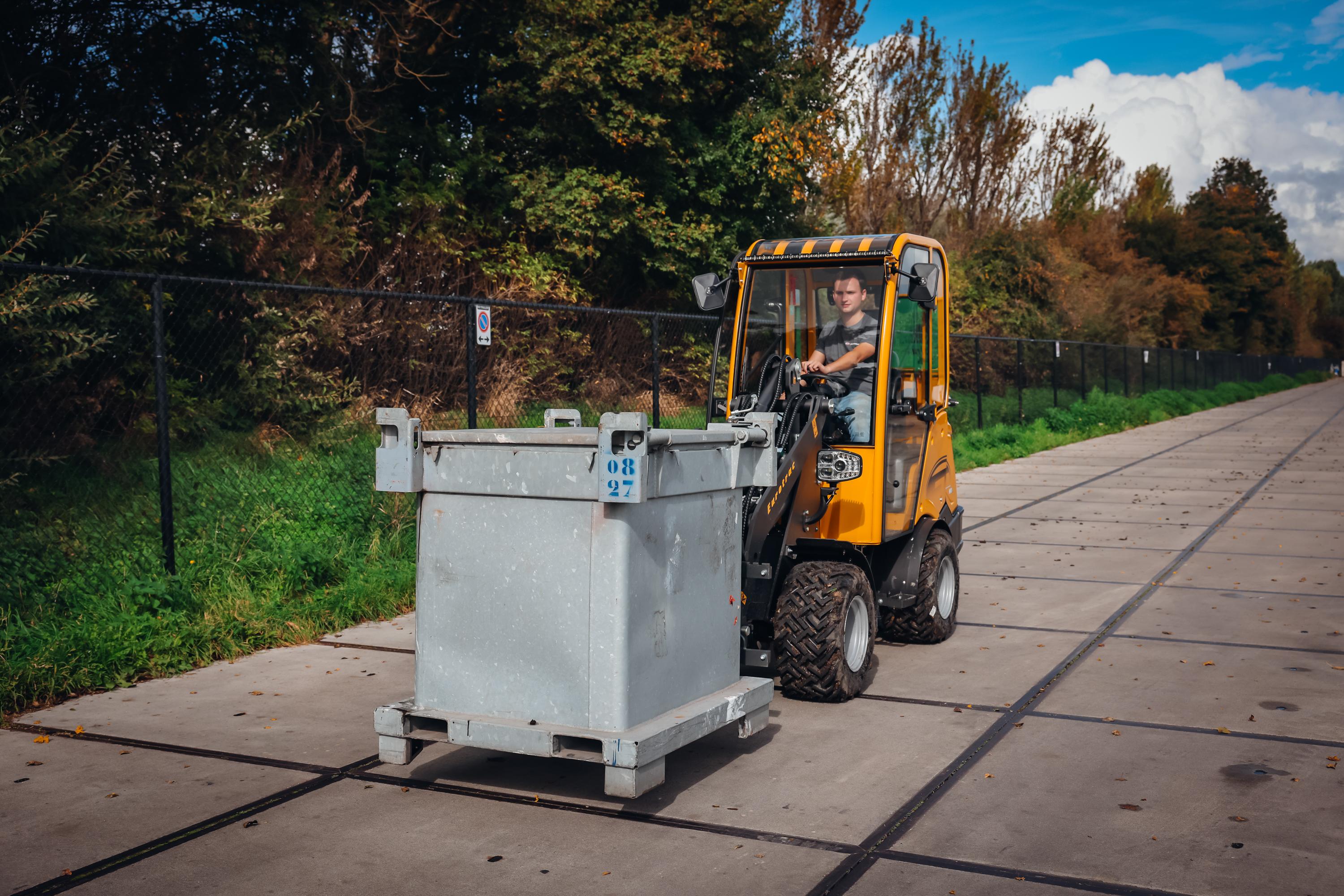

Eurotrac W11 CL long Wheelbase
The Eurotrac W11-CL for agricultural and industrial use.
Fitted as standard with:
- 3-cylinder Kubota D1105
- Extended wheelbase
- Joystick controls
- Twin cylinders on mast
- Additional hydraulic function with lock
- Hydraulic quick-change system
- Hydrostatic drive
- Work light / Rotating beacon / LED lights
- Tyre size 26×12-12AS
Downloads
Max. lifting height
2550
Engine power
26
Lifting frame horizontal & machine straight
1600
Own weight
2050
Technical drawing
- (A) Overall length with bin
- 3878
- (B) Overall length without bin
- 3068
- (C) Bin pivot
- 430
- (D) Cradle base
- 1485
- (E) Rear overhang
- 1062
- (F) Height to top of roof
- 2220
- (H) Seat height
- 1128
- (J) Total working height
- 3440
- (K) Max. lifting height
- 2550
- (L) Loading height
- 2238
- (M) Ejection height
- 1694
- (N) Range (m)
- 482
- (O) Digging depth
- 183
- (P) Overall width
- 1110
- (Q) Track width
- 803
- (S) Ground clearance
- 174
- (T) Outer diameter
- 2690
- (U) Turning circle
- 2390
- (V) Inside turning circle
- 1100
- (W) Rotation angle
- 43
- (X) Tilting angle at max. lifting height
- 49
- (Y) Tipping angle
- 43
- (Z) Tilt-in angle
- 50
Specifications
Electrical information
- Battery capacity
- 60
- Electric system
- 12 V
Engine
- Cooling
- Liquid
- Engine power
- 26
Hydraulic system
- Oil yield
- 32
- Workload
- 180 bar
Other
- Diesel tank
- 26
- Hydro tank
- 40
Weight
- Lifting frame horizontal & machine straight
- 1600
- Lifting frame horizontal & machine tilted
- 1200 kg
- Max. Lifting capacity
- 1400
- Own weight
- 2050
The Eurotrac W11CL. The ‘L’ stands for extended wheelbase (+12 cm compared to the standard models). The W11L also features a counterweight that is positioned further back and is heavier, bringing the machine’s total weight to 2,050 kg. The W11-CL is fitted with two lift cylinders on the arm; taken together, these enable a higher lifting capacity of 1,650 kg and a lift height of 260 cm.
