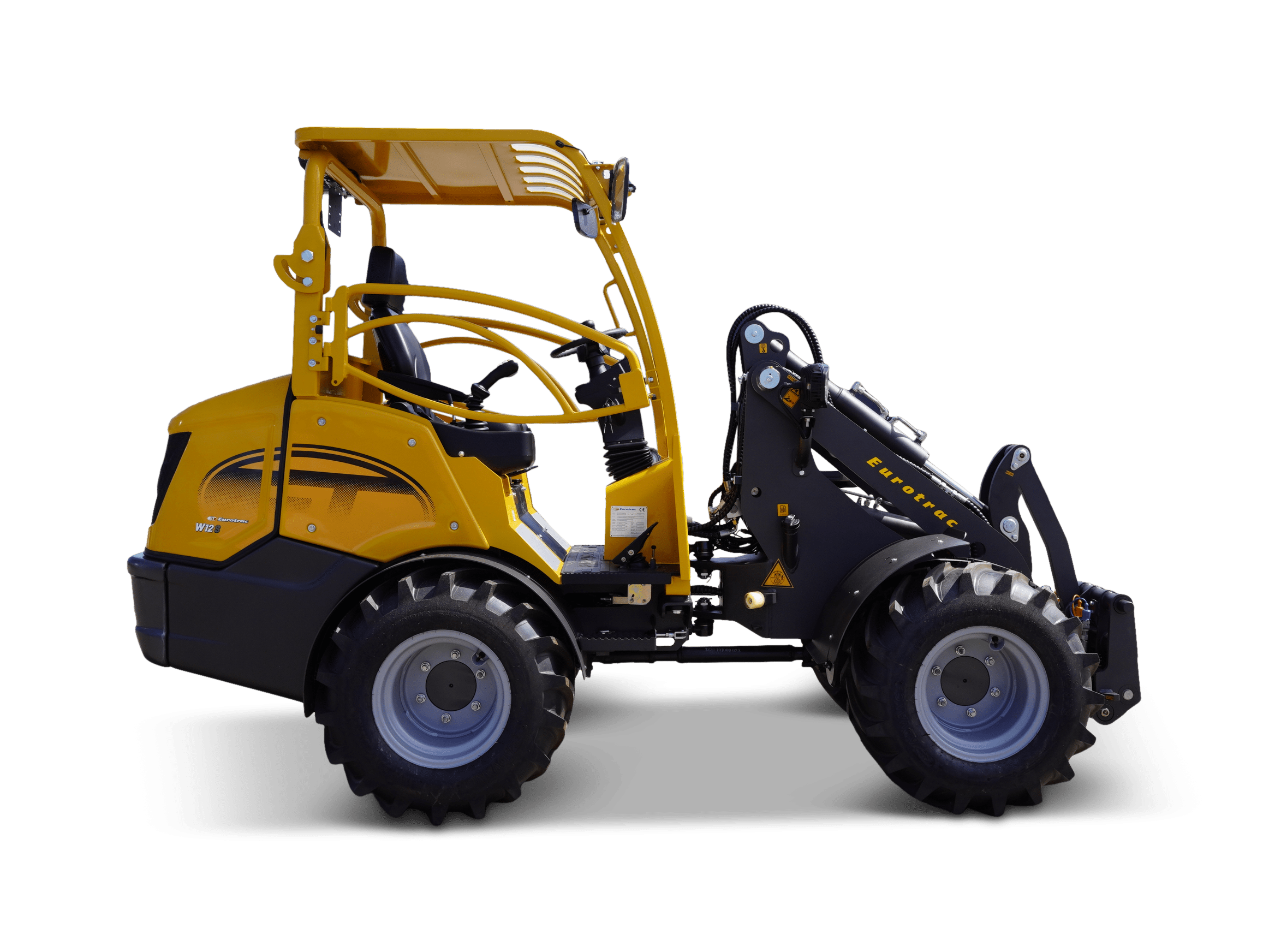

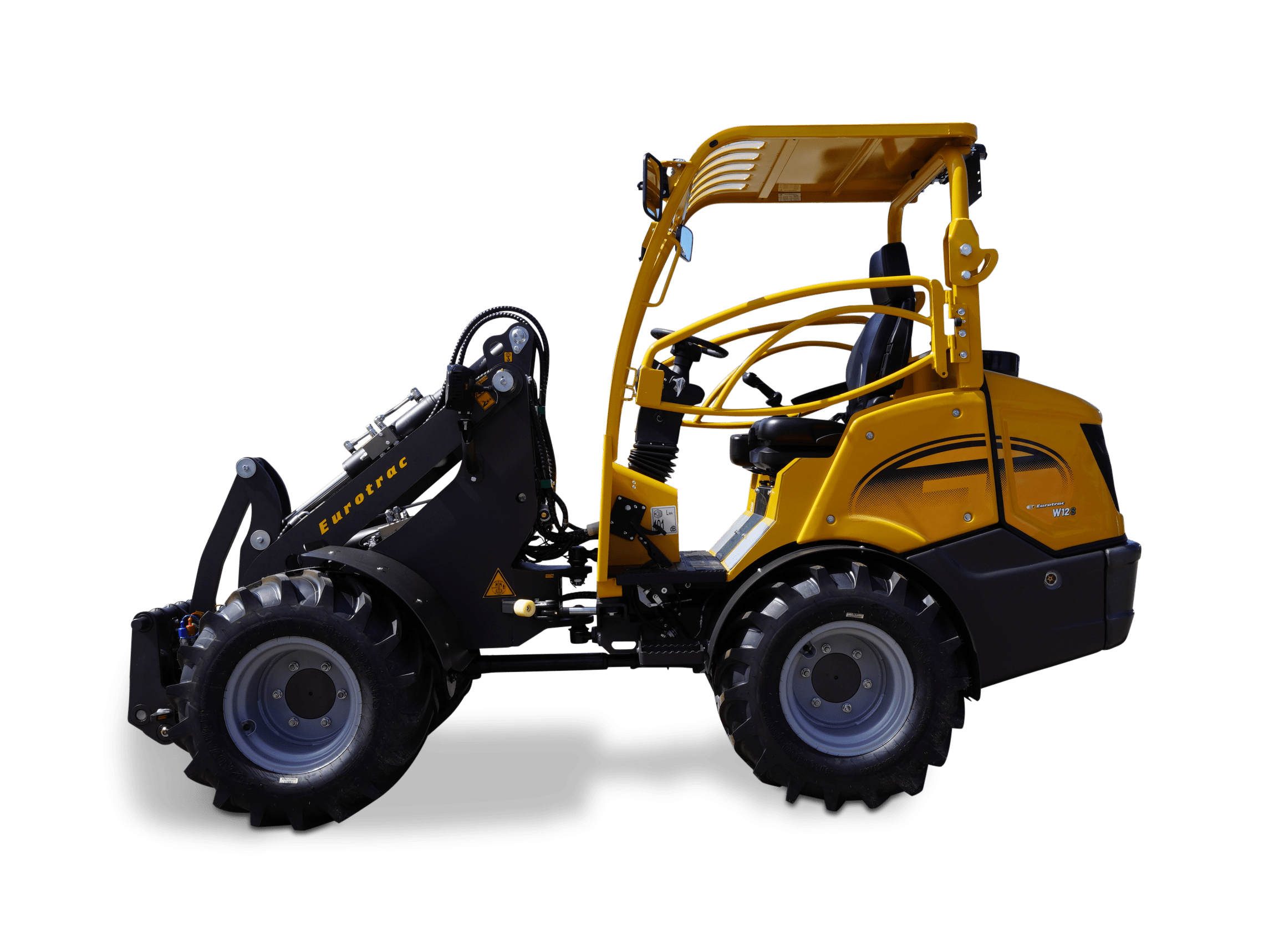

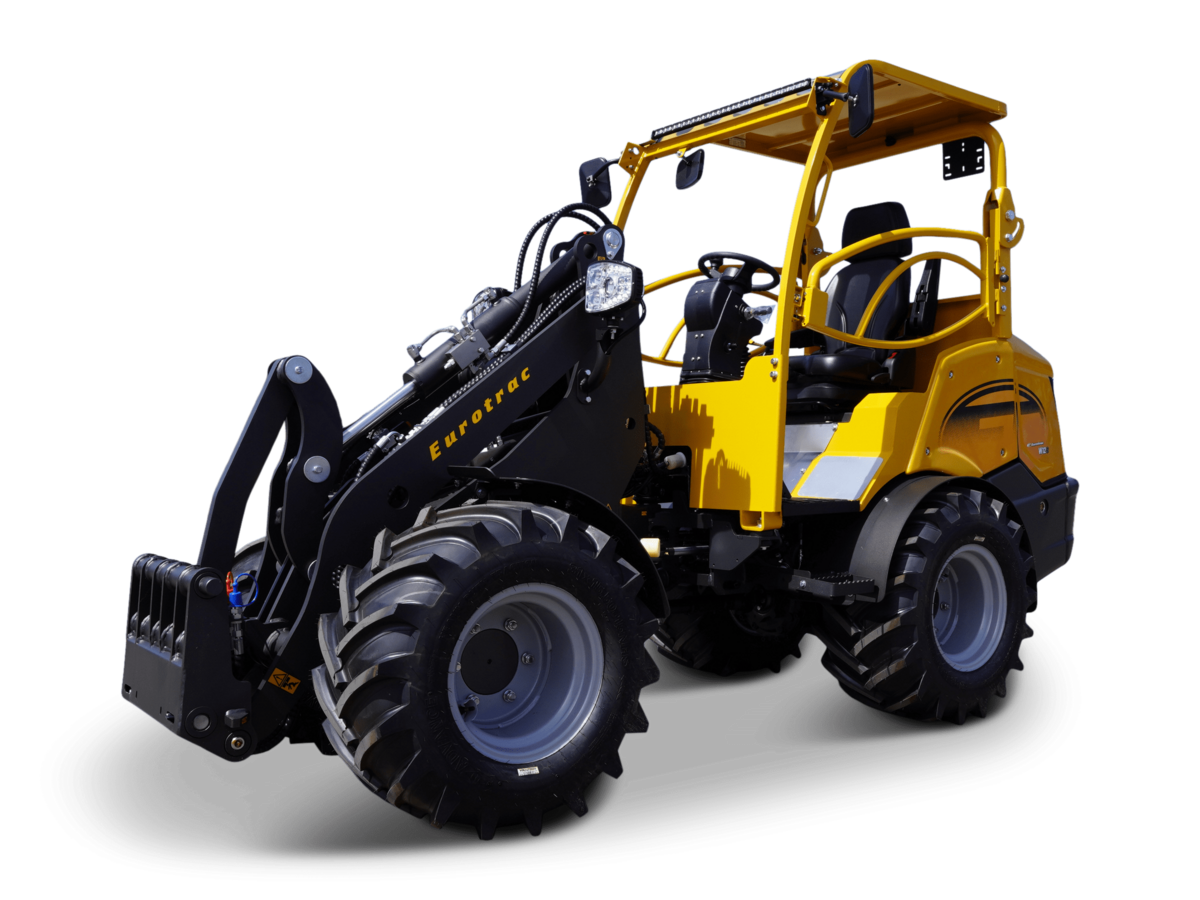

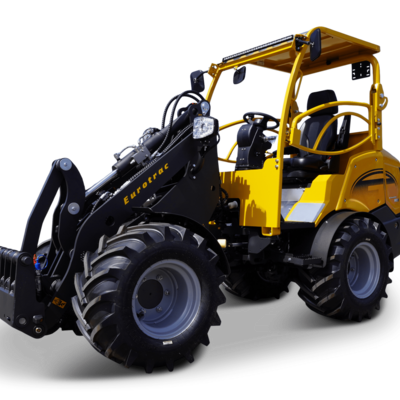

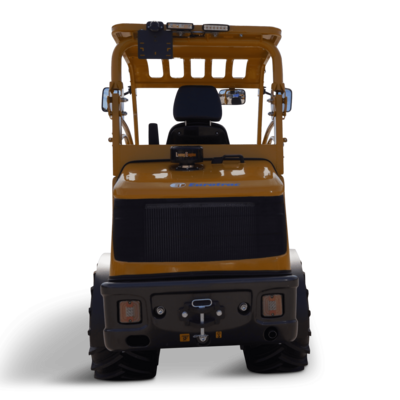

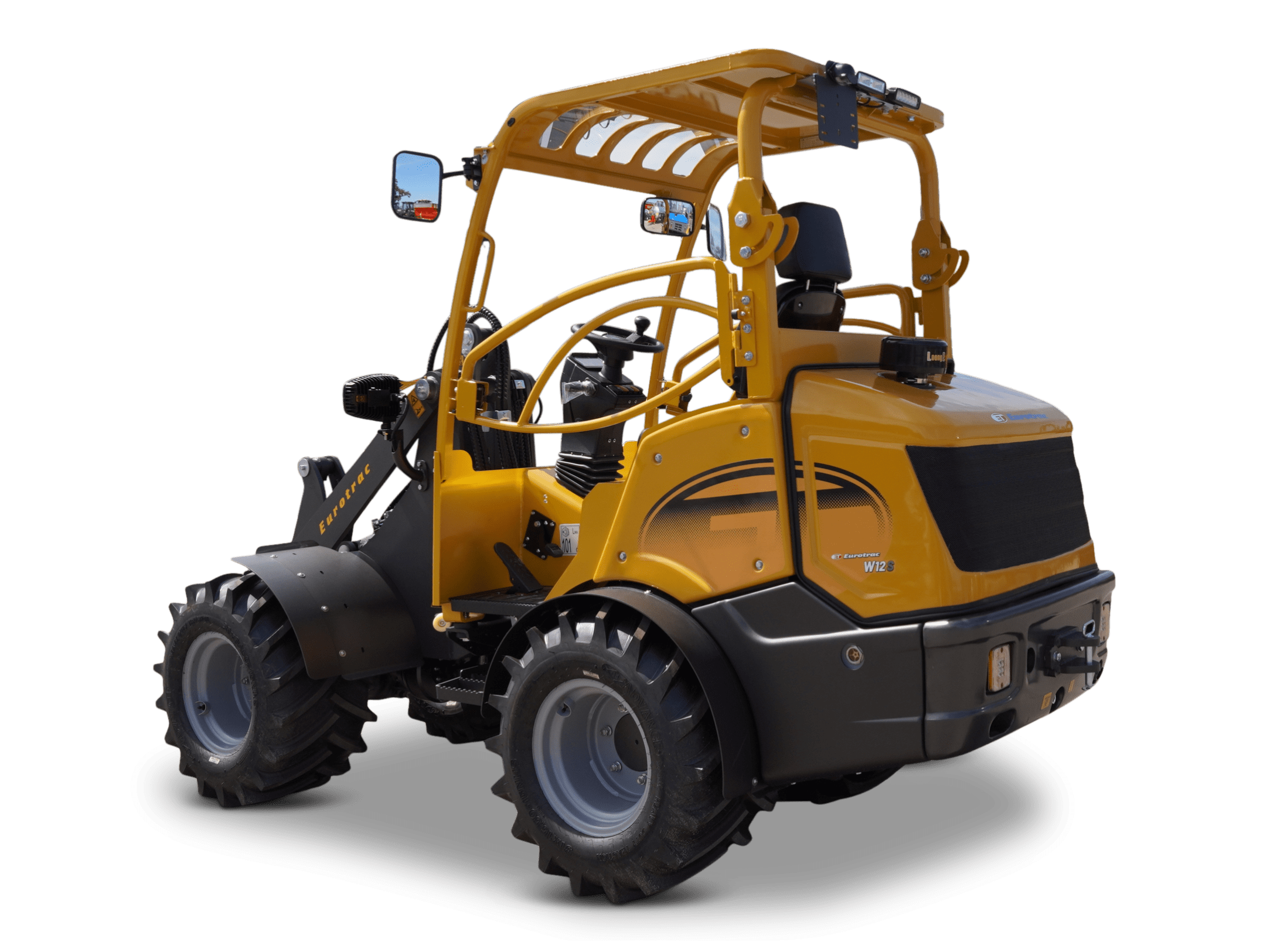

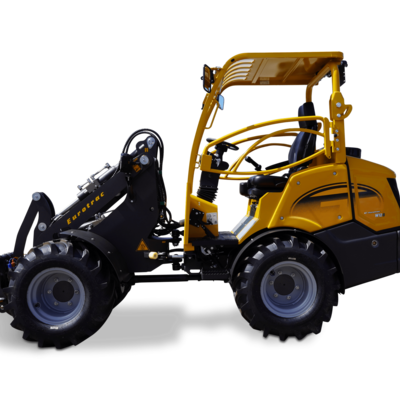

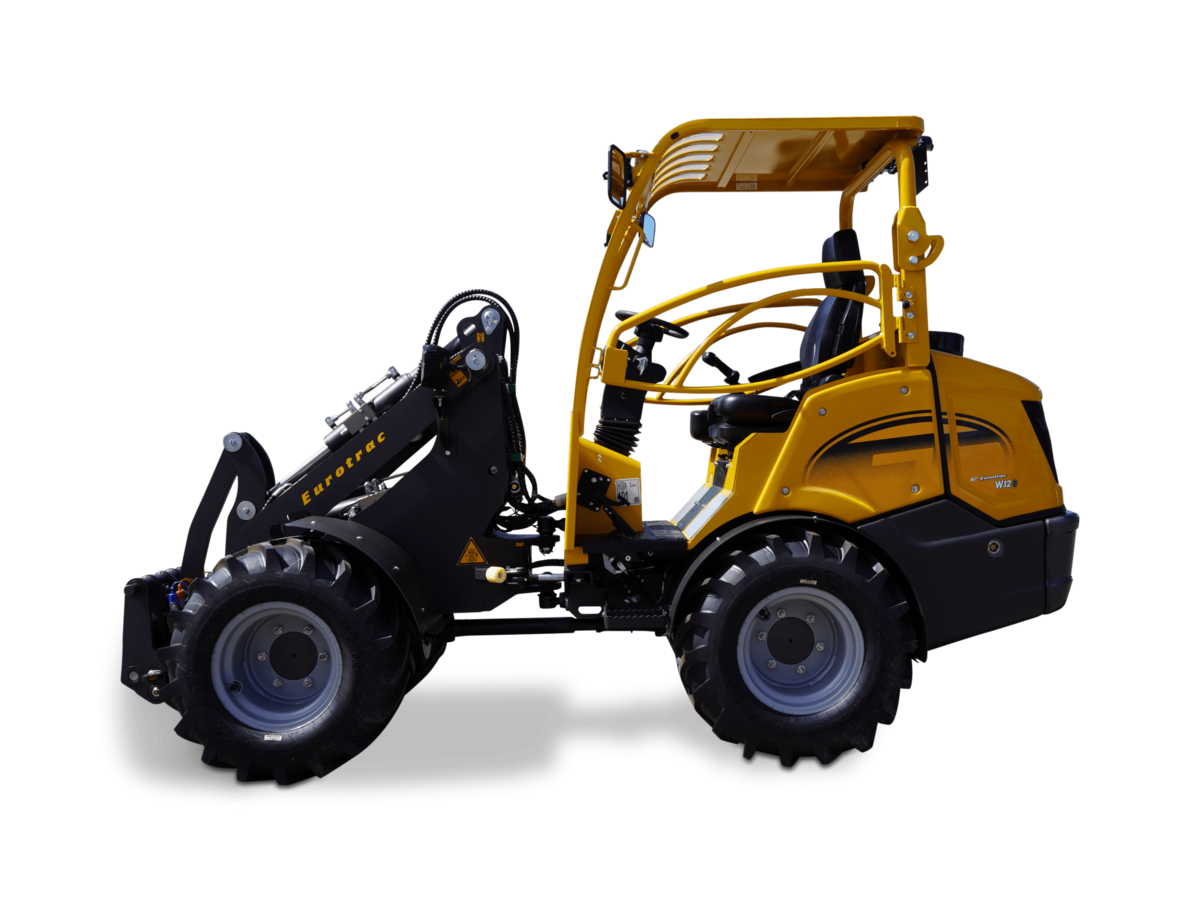

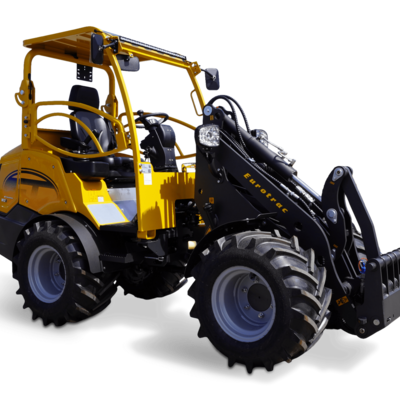

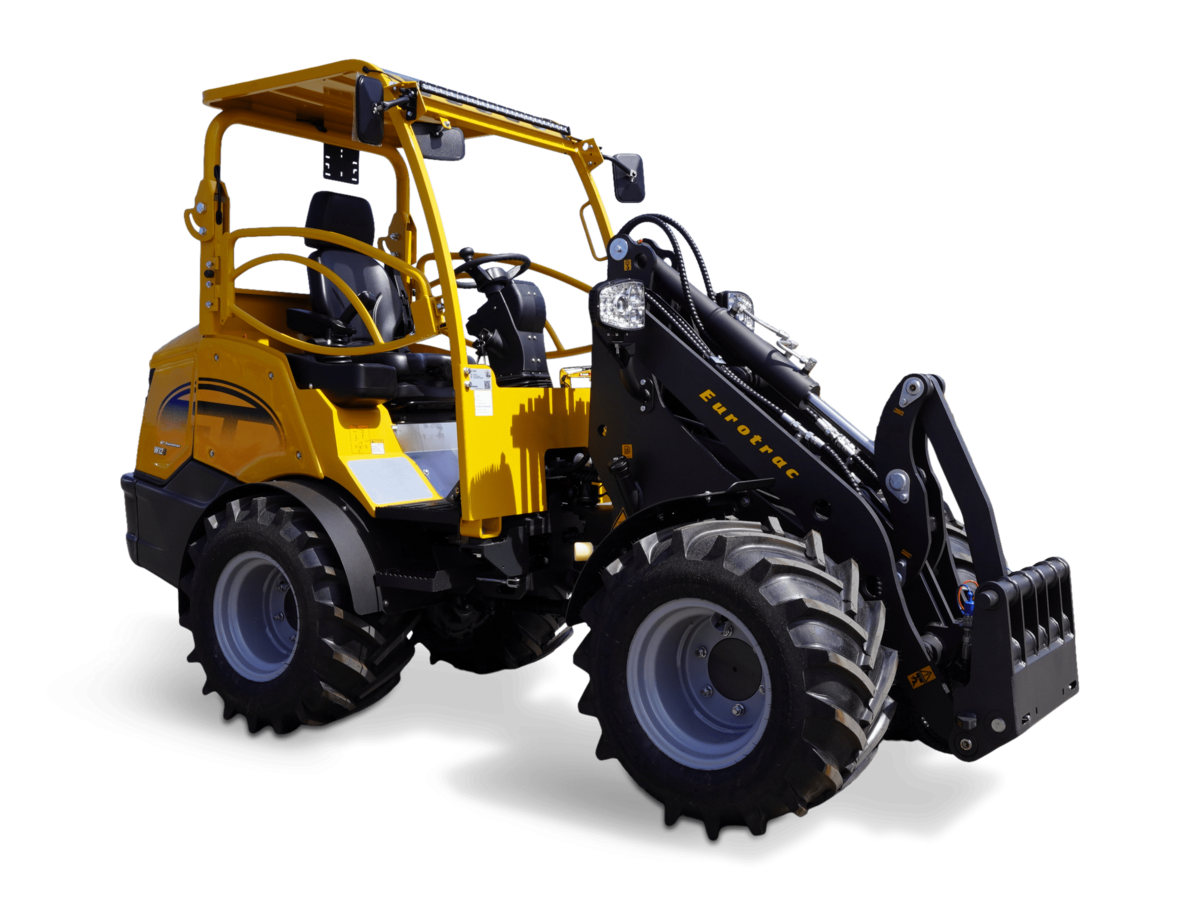

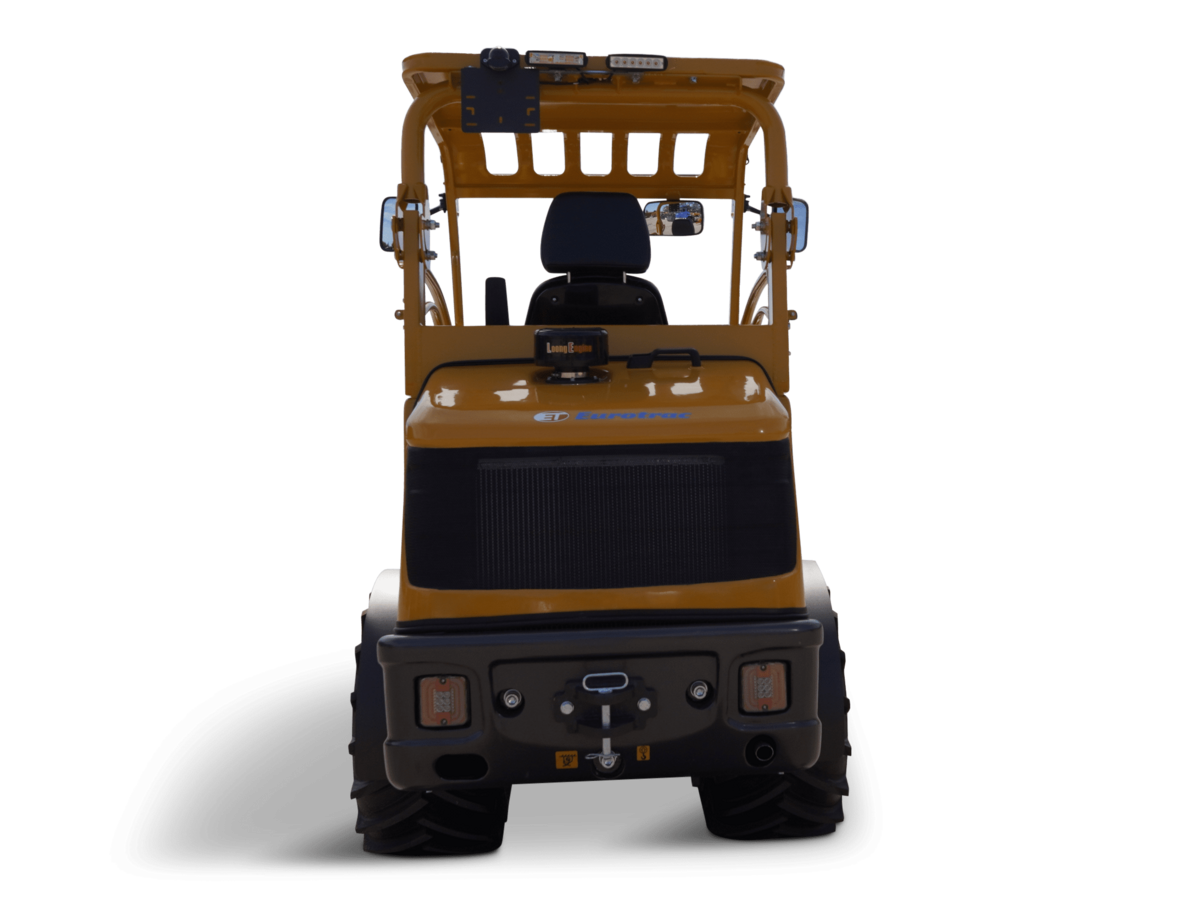

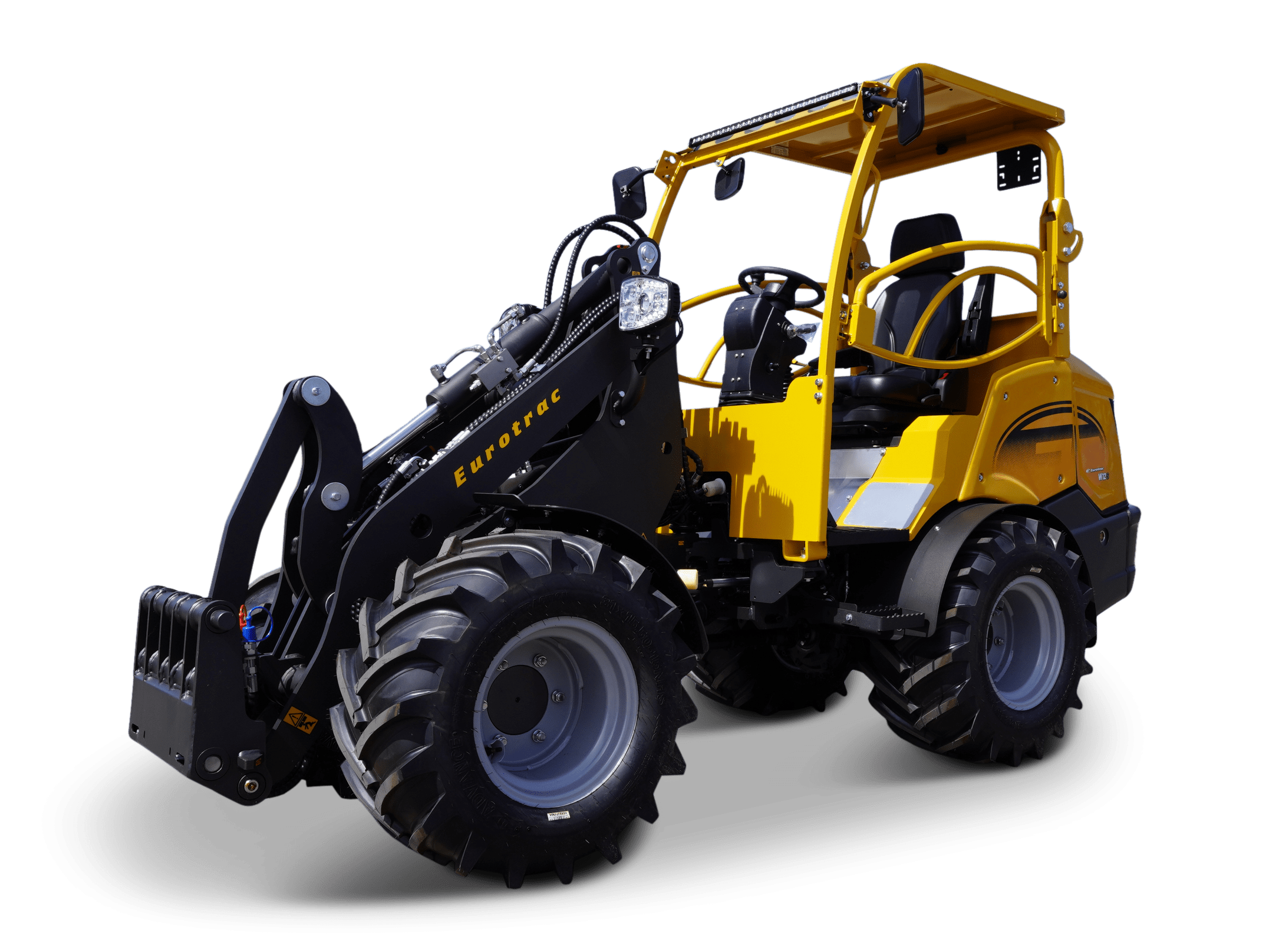

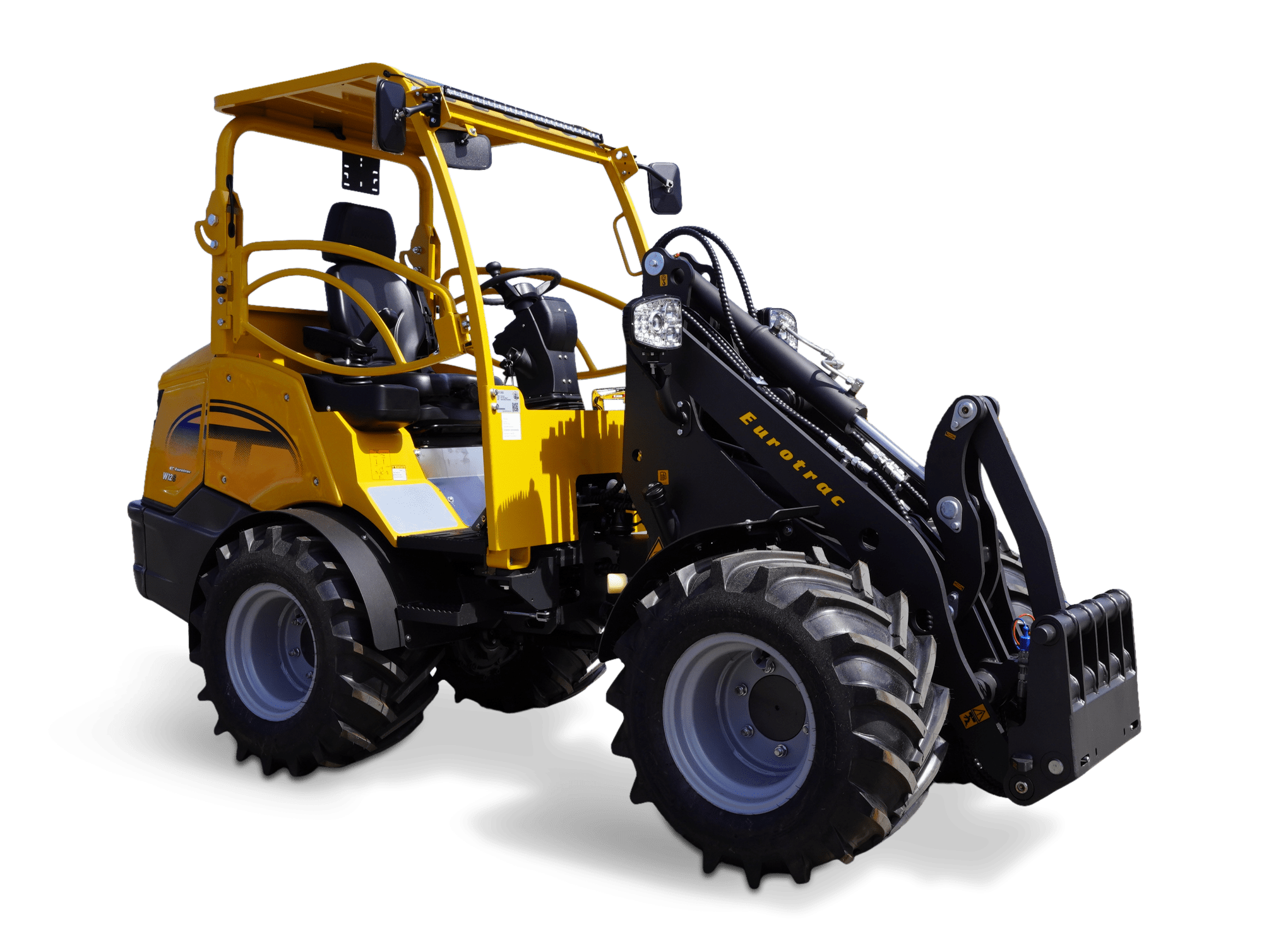

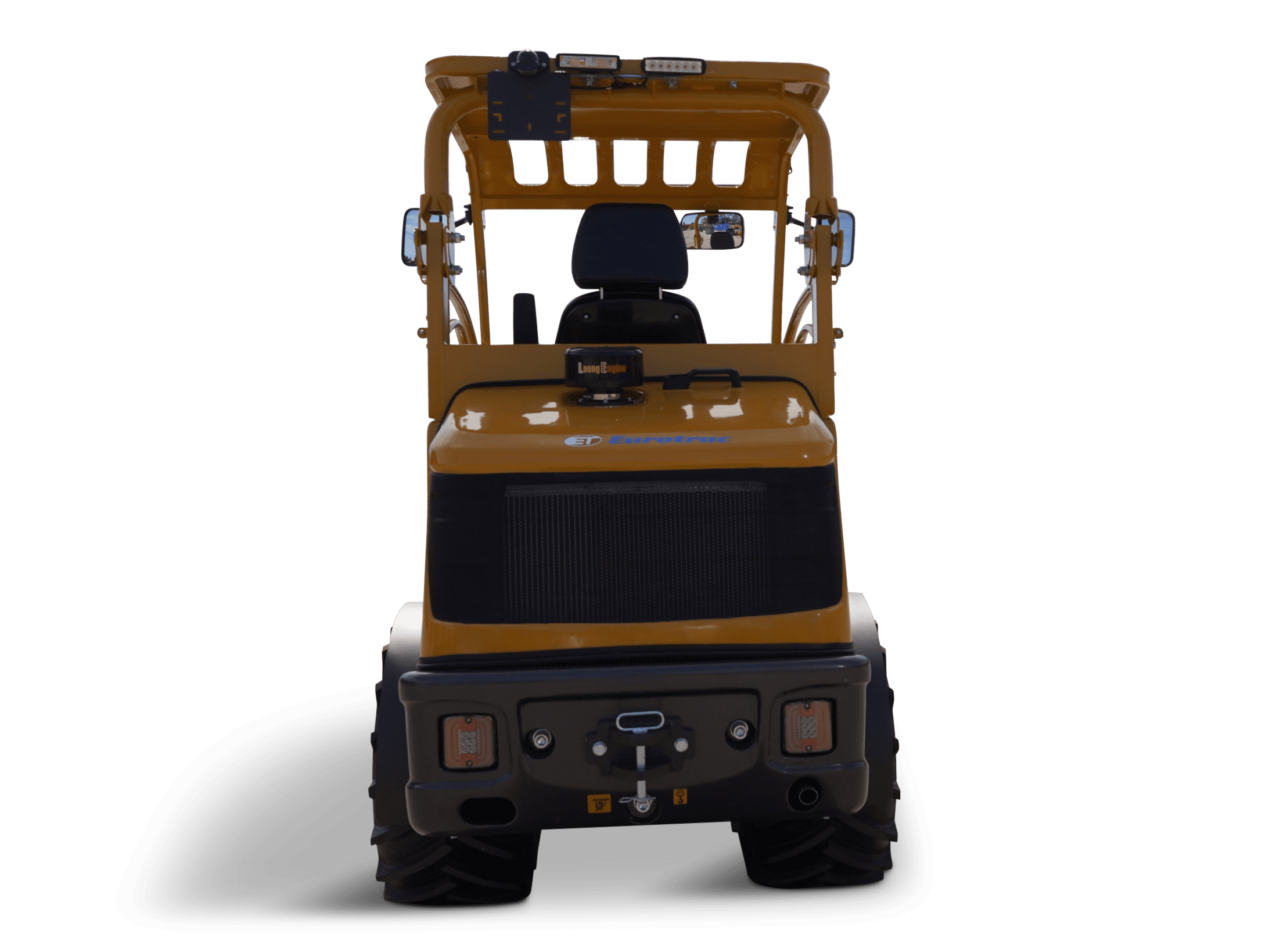

Eurotrac W12 MS
The Eurotrac W12-S for agricultural and industrial use
Fitted as standard with:
- Kubota Stage-V engine

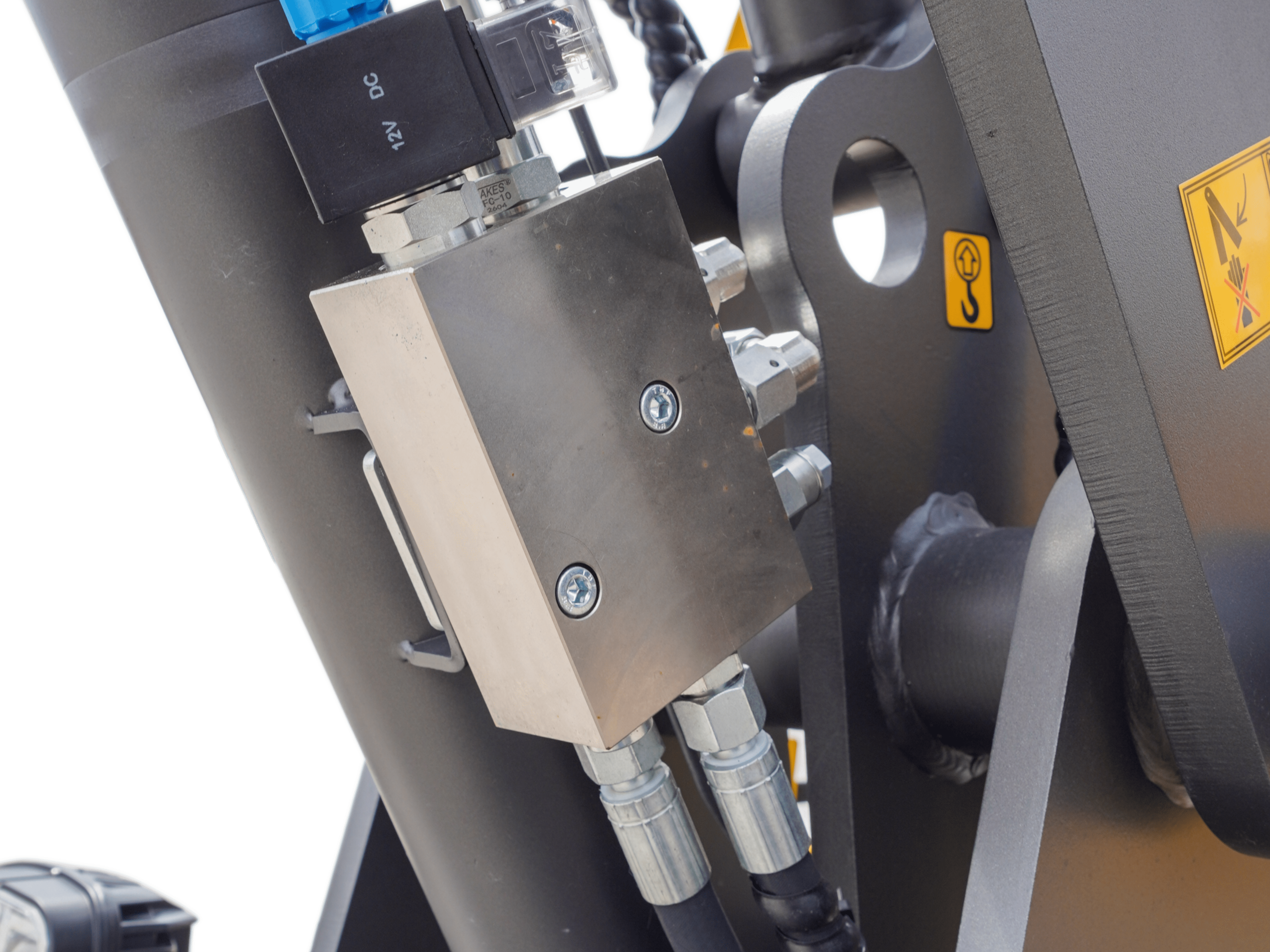

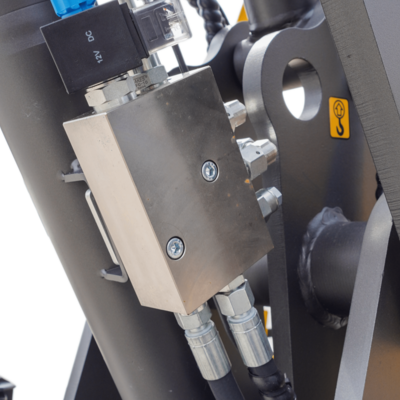

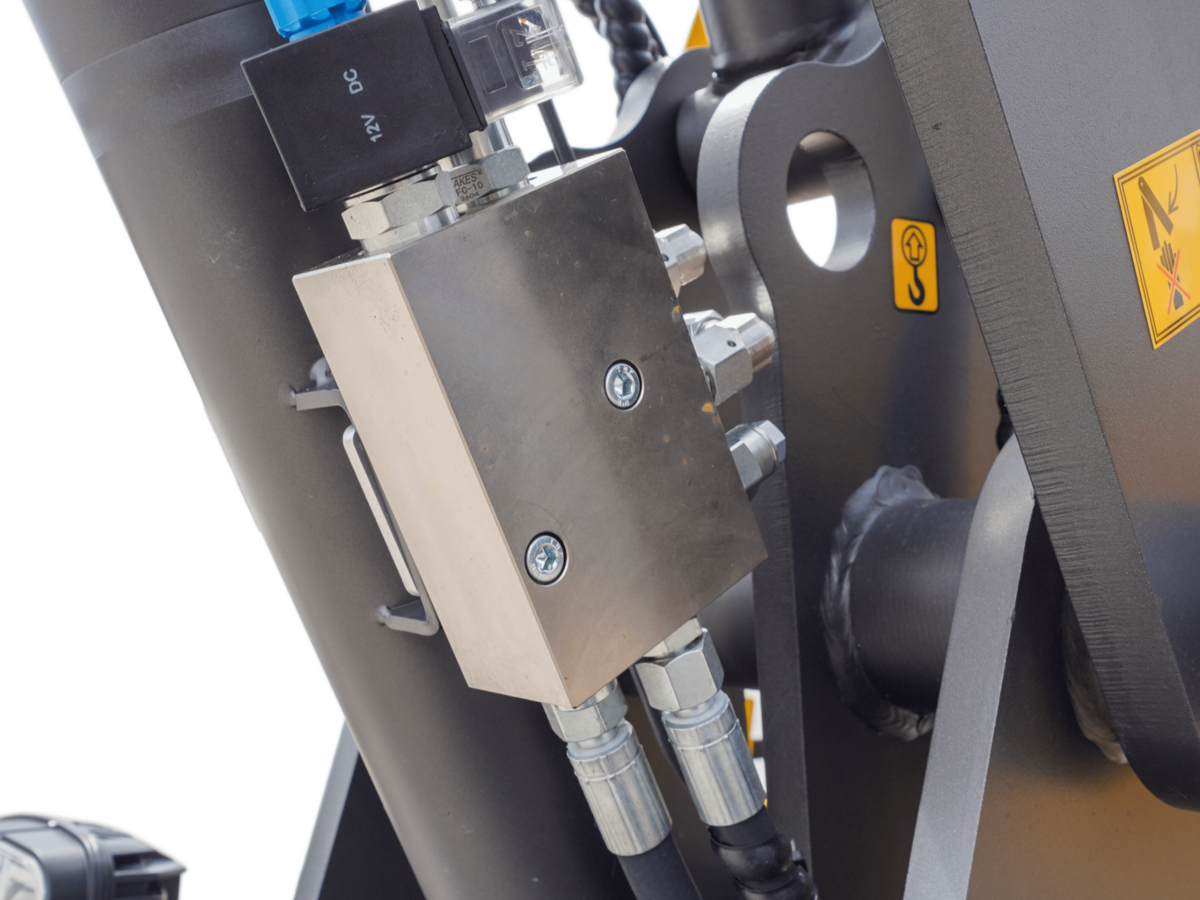

- Extra hydraulic function on joystick
- Hydraulic quick coupler
- Hydrostatic with 2 travel speeds
- Heavy duty axles
- Work lights / LED lamps
- Wide tyres 31×15.5-15
Downloads
Max. lifting height
2600
Engine power
26
Lifting frame horizontal & machine straight
1300
Own weight
2150
Technical drawing
- (A) Overall length with bin
- 4360
- (B) Overall length without bin
- 3440
- (C) Bin pivot
- 704
- (D) Cradle base
- 1600
- (E) Rear overhang
- 1094
- (F) Height to top of roof
- 2225
- (H) Seat height
- 1205
- (J) Total working height
- 3235
- (K) Max. lifting height
- 2600
- (L) Loading height
- 2300
- (M) Ejection height
- 2250
- (N) Range (m)
- 517
- (O) Digging depth
- 65
- (P) Overall width
- 1340
- (Q) Track width
- 980
- (S) Ground clearance
- 230
- (T) Outer diameter
- 2597
- (U) Turning circle
- 3085
- (V) Inside turning circle
- 1419
- (W) Rotation angle
- 45
- (X) Tilting angle at max. lifting height
- 45
- (Y) Tipping angle
- 45
- (Z) Tilt-in angle
- 46
Specifications
Electrical information
- Battery capacity
- 60
- Electric system
- 12 V
Engine
- Cooling
- Liquid
- Engine power
- 26
Hydraulic system
- Oil yield
- 46
- Workload
- 180 bar
Other
- Diesel tank
- 45
- Hydro tank
- 40
Weight
- Lifting frame horizontal & machine straight
- 1300
- Lifting frame horizontal & machine tilted
- 840 kg
- Max. Lifting capacity
- 1350
- Own weight
- 2150
