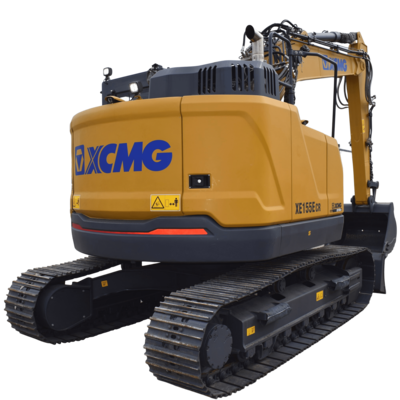

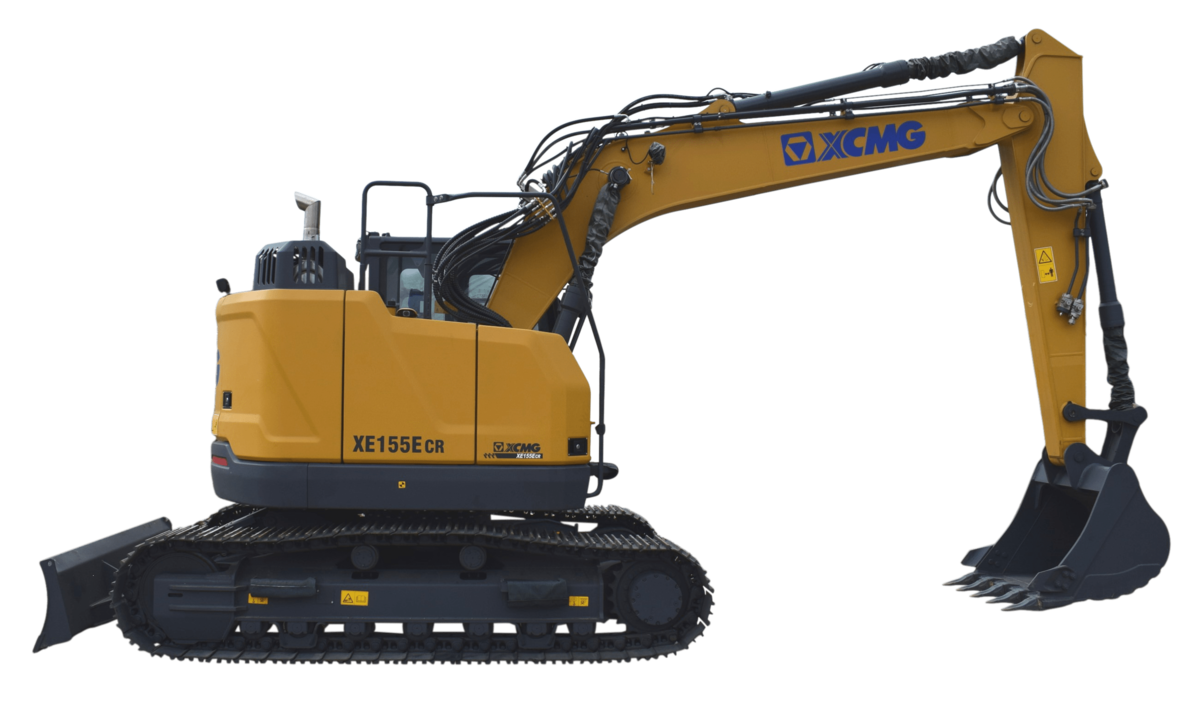

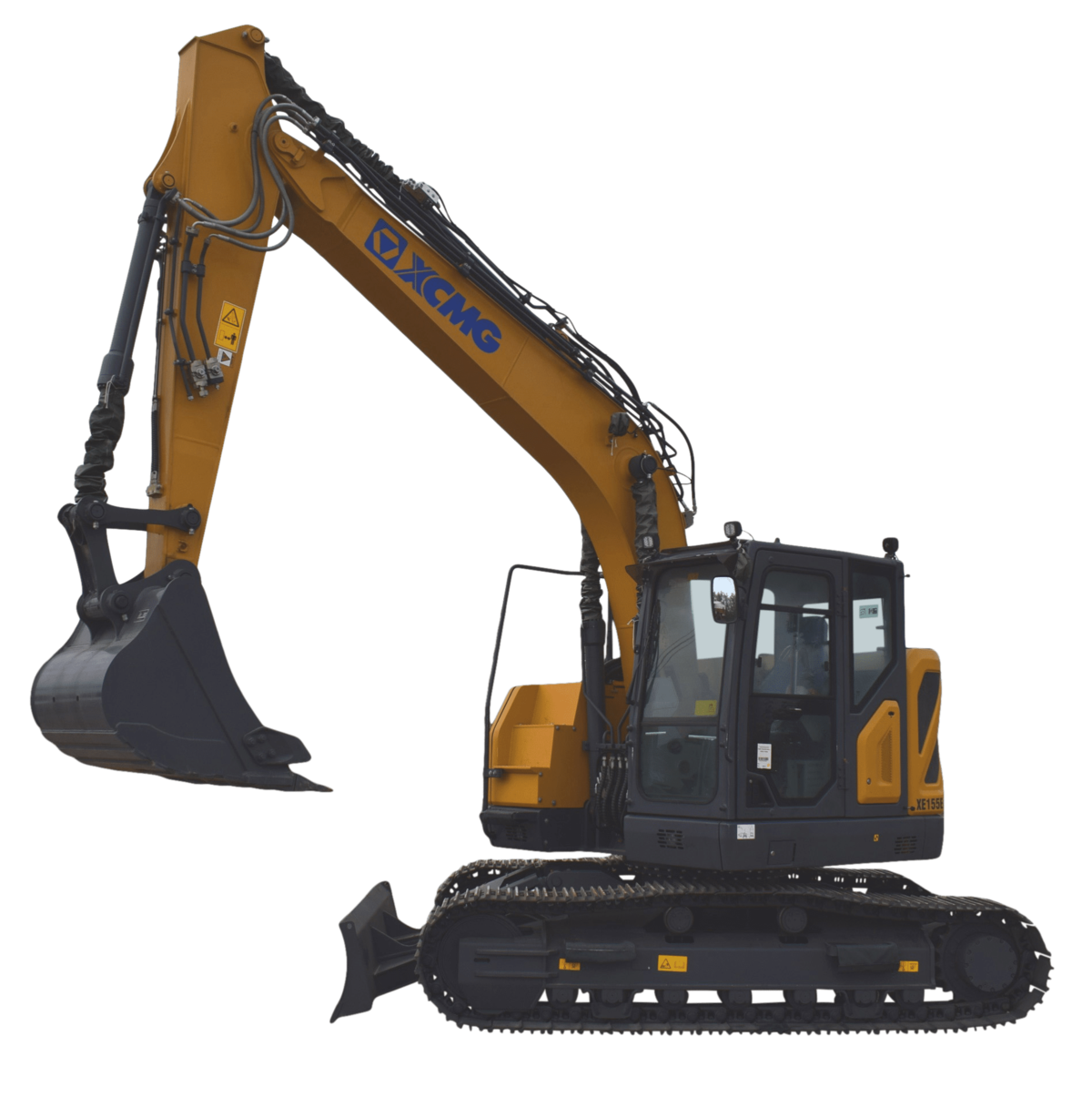

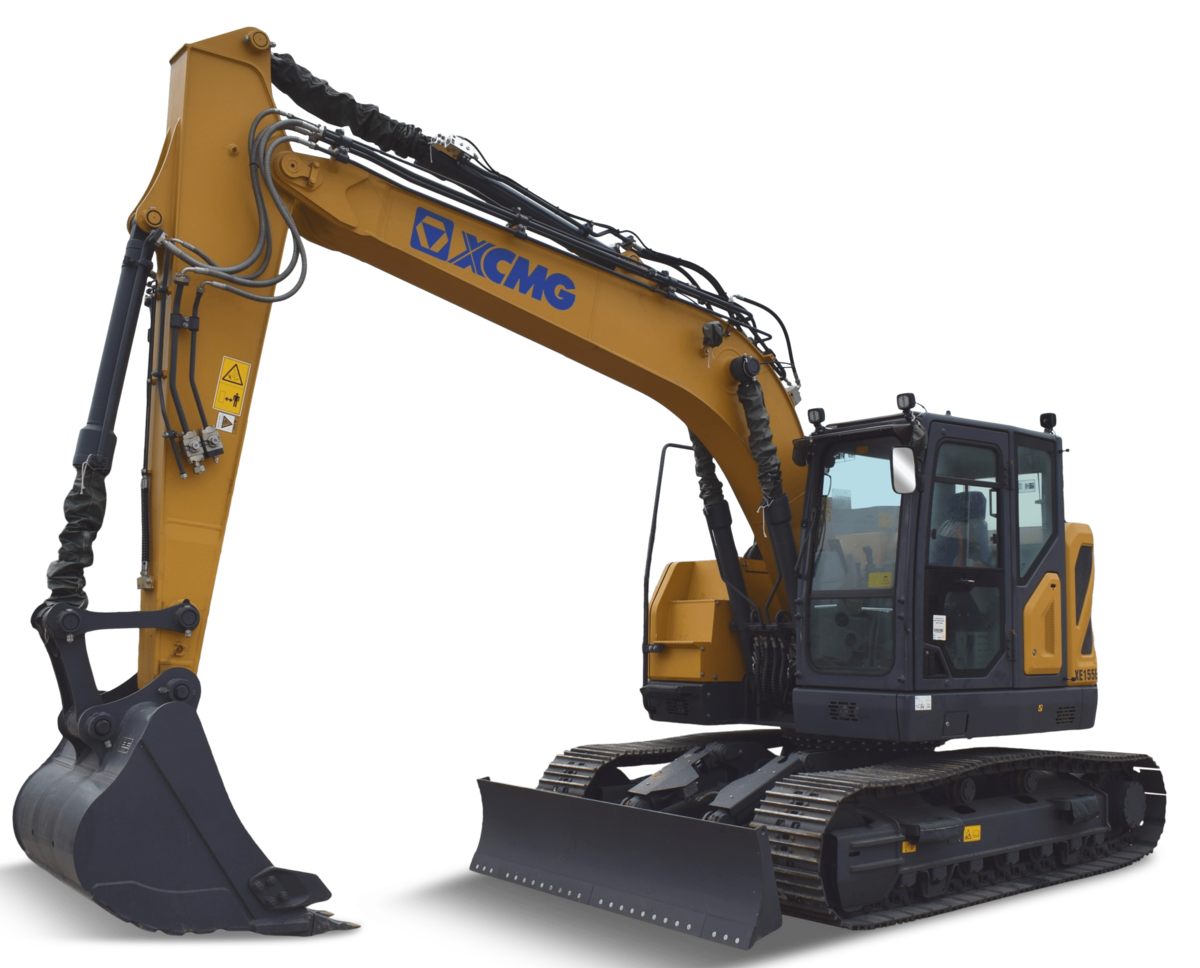

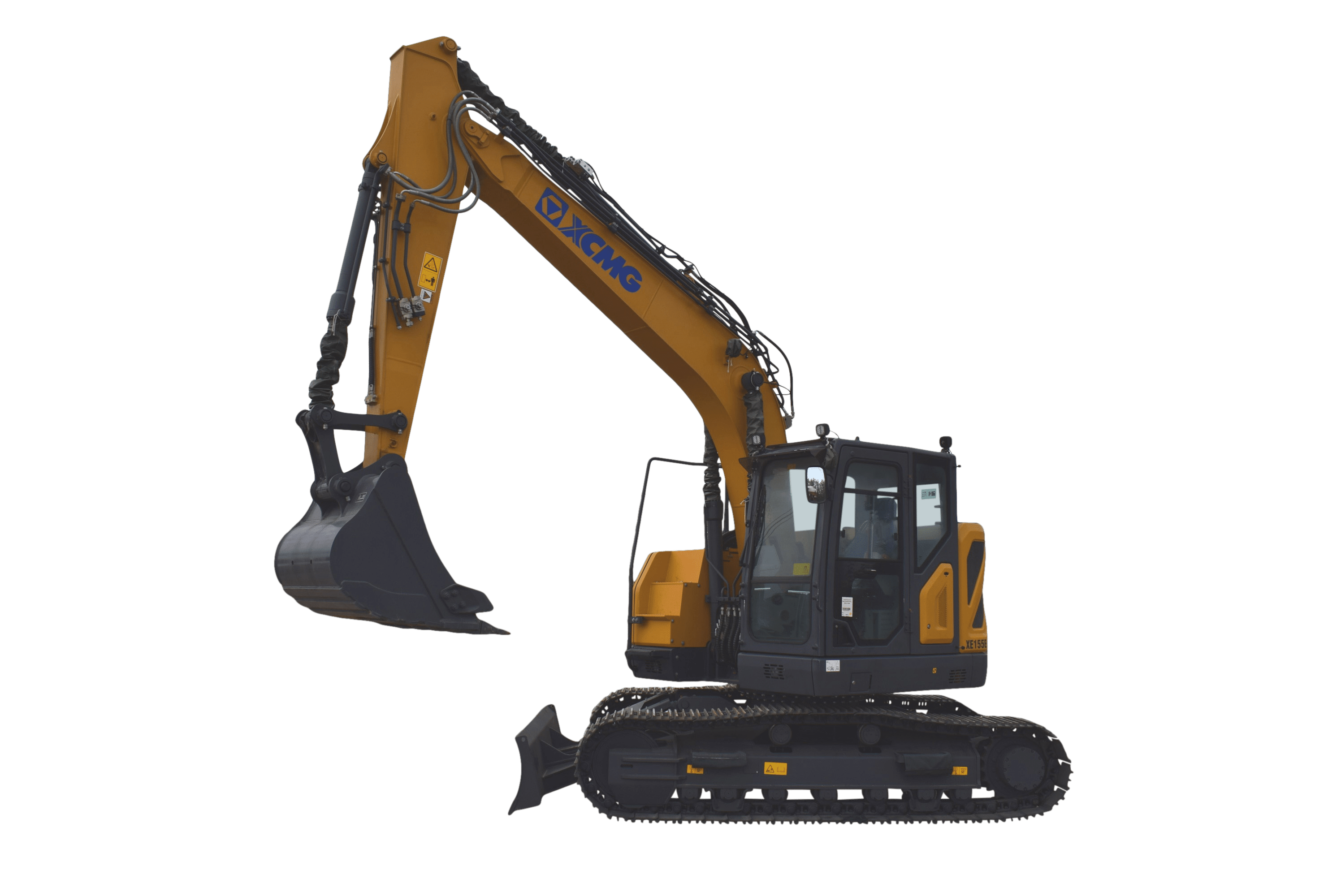

XCMG XE155-ECR
Fitted as standard with:
- Cummins B4.5 diesel engine
- 90 kW (121 hp) power
- Stage V
- Liquid cooling with variable-speed fan
- Hydraulic system with double plunger pumps, output of 2 × 123.5 l/min
- Hydraulic quick coupler
- Caterpillar of 500 mm width
- Advanced slewing system with a speed of 11.3 rpm
Downloads
Overall width
2490
Track width
1990
Own weight
16600
Specifications
Dimensions
- Cabin width
- 2490
- Counterweight free space
- 944
- Cradle base
- 3839
- Ground clearance
- 476
- Height to top of roof
- 3030
- Max. Digging depth
- 5535
- Max. Digging height
- 8650
- Max. Tipping height
- 6185
- Max. Vertical digging depth
- 4697
- Max. excavation radius
- 8295
- Min. forcing radius
- 2475
- Overall length with bin
- 7924
- Overall width
- 2490
- Platform width
- 2476
- Track width
- 1990
- Width of tracks
- 500
Engine
- Cooling
- Liquid
- Rated speed
- 2200
Hydraulic system
- Driving system pressure
- 350
- Main pressure safety valve
- 33.4
- Main pump output
- 123.5
- Steering pressure
- 40
- Swing system pressure
- 255
Other
- Diesel tank
- 200
- Engine oil capacity
- 11
- Hydro tank
- 90
Technical specifications
- Arm digging force
- 73.4
- Ground pressure
- 41.5
- Max. Digging force
- 106.9
- Rotation speed
- 11.3
Weight
- Own weight
- 16600
XCMG XE155ECR - Powerful and Agile Excavator for the Construction Industry
The XCMG XE155ECR is a versatile and powerful excavator designed for earthmoving, road construction, demolition and infrastructure projects. The compact short-tail design allows this machine to work efficiently on tight construction sites without compromising on performance.
Optimum power and efficiency
The XE155ECR is equipped with a Cummins B4.5 diesel engine, which delivers 90 kW (121 hp) of power and complies with the Stage V emission standard. This ensures low fuel consumption and minimal emissions. With a maximum digging depth of 5,535 mm and a maximum digging force of 106.9 kN, this machine is ideal for heavy-duty applications.
Advanced Hydraulic Performance
Thanks to hydraulic plunger pumps with an output of 2 × 123.5 l/min, the excavator operates smoothly and accurately. The hydraulic quick coupler allows quick change of attachments such as bucket, demolition hammer or grapple, making the machine versatile.

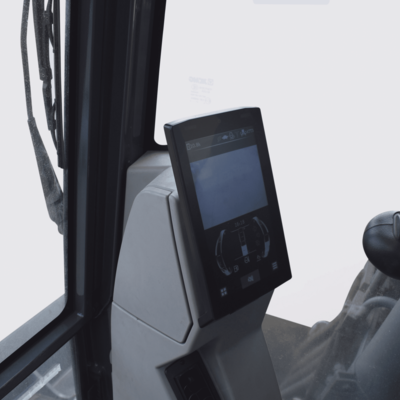

Comfort and safety for the operator
The spacious and ergonomically designed cab offers optimal visibility and ease of operation. The advanced steering and hydraulic slewing system with a speed of 11.3 rpm ensure efficient operation. Moreover, the 500 mm wide tracks and 1,990 mm track width ensure stability on any terrain.
Why choose the XCMG XE155ECR?
- Powerful Cummins B4.5 diesel engine with 90 kW (121 hp) of power
- Stage V emissions certification for cleaner and more efficient operation
- Maximum digging depth of 5,535 mm and digging force of 106.9 kN
- Compact short-tail design for working in tight spaces
- Advanced high-flowhydraulic system for smooth operation
- Hydraulic quick coupler for easy attachment changes
- Ergonomic cab with excellent visibility and user-friendly operation
- 200-litre fuel tank for long working periods without interruption
Interested in the XCMG XE155ECR?
Are you looking for a reliable and efficient excavator for earthmoving, road construction or demolition work? Contact us for more information, a quote or a demonstration of the XCMG XE155ECR.
