Overall width
1300
Own weight
1975
Technical drawing
- (A) Height to top of roof
- 2350
- (B) Overall length with bin
- 3860
- (C) Overall width
- 1300
- (D) Width of upper structure
- 990
- (E) Chassis width
- 1300
- (F) Track length
- 1564
- (G) Height of tracks
- 380
- (H) Width of tracks
- 230
- (I) Cradle base
- 1230
- (K) Counterweight free space
- 465
- (L) Ground clearance
- 155
- (L1) Max. excavation radius
- 4120
- (L10) Maximum lifting height of dozer blade
- 230
- (L11) Max cutting depth of dozer blade
- 230
- (L2) Maximum reach at GRP
- 4070
- (L3) Max. Digging height
- 3620
- (L4) Max. Tipping height
- 2560
- (L5) Minimum unloading height
- 628
- (L6) 8 ft digging depth with flat floor
- 2000
- (L7) Max. Vertical digging depth
- 2140
- (L8) Max. Digging depth
- 2580
- (L9) Min. forcing radius
- 1520
- (M) Tail swing radius
- 1100

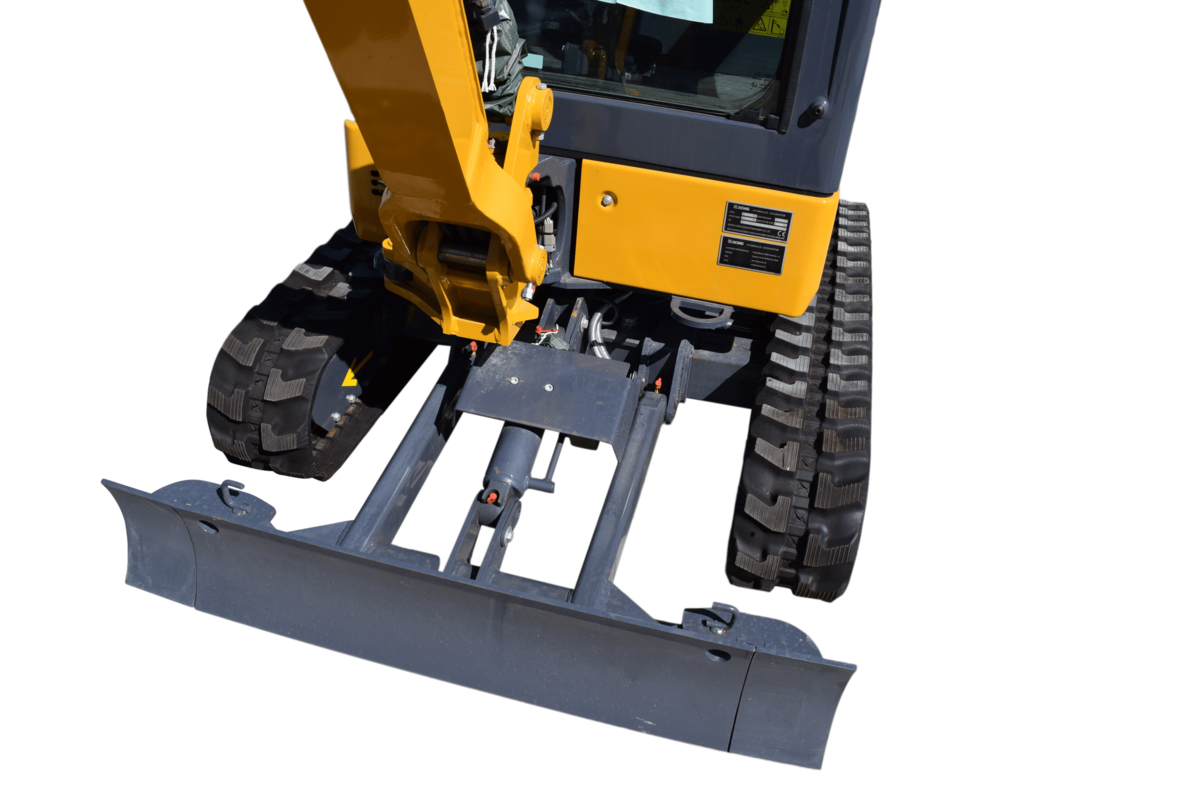

- (N) Height of dozer blade
- 260 mm
Specifications
Engine
- Rated speed
- 2300
Hydraulic system
- Driving system pressure
- 210
- Main pressure safety valve
- 253
- Main pump output
- 64.4
- Steering pressure
- 35
- Swing system pressure
- 110
Other
- Diesel tank
- 25
- Engine oil capacity
- 5
- Hydro tank
- 20
Technical specifications
- Arm digging force
- 8
- Ground pressure
- 26.4
- Max traction force
- 14
- Max. Digging force
- 16
- Rotation speed
- 8
Weight
- Own weight
- 1975

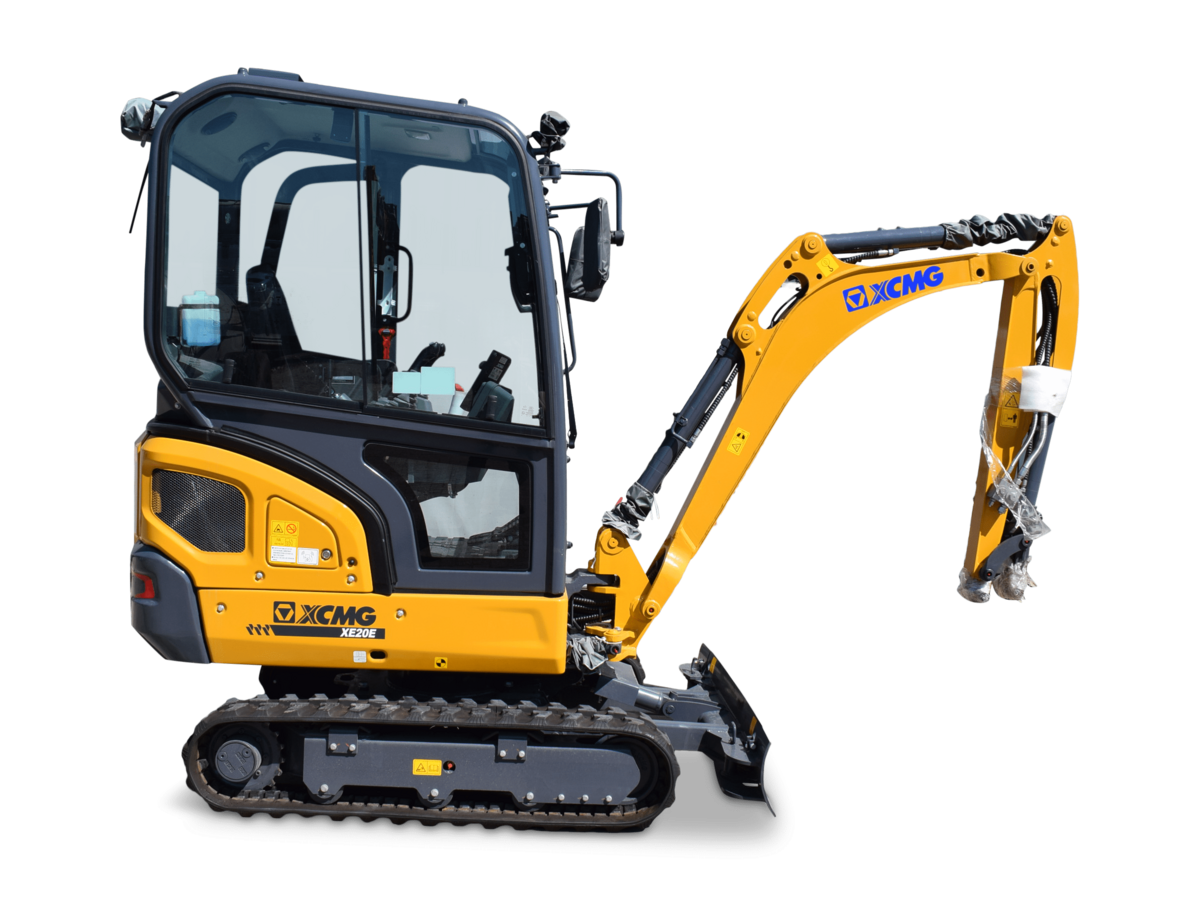

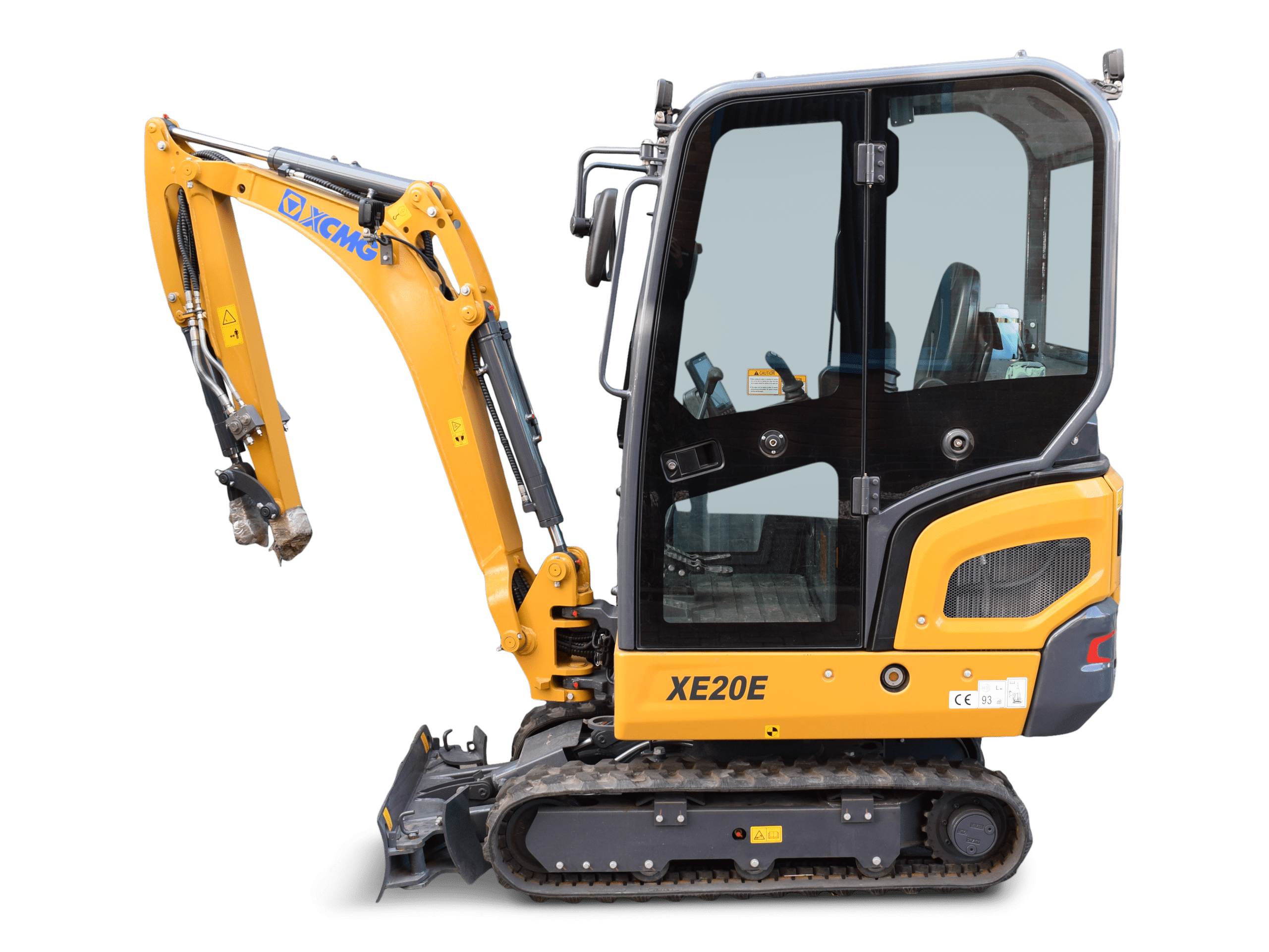

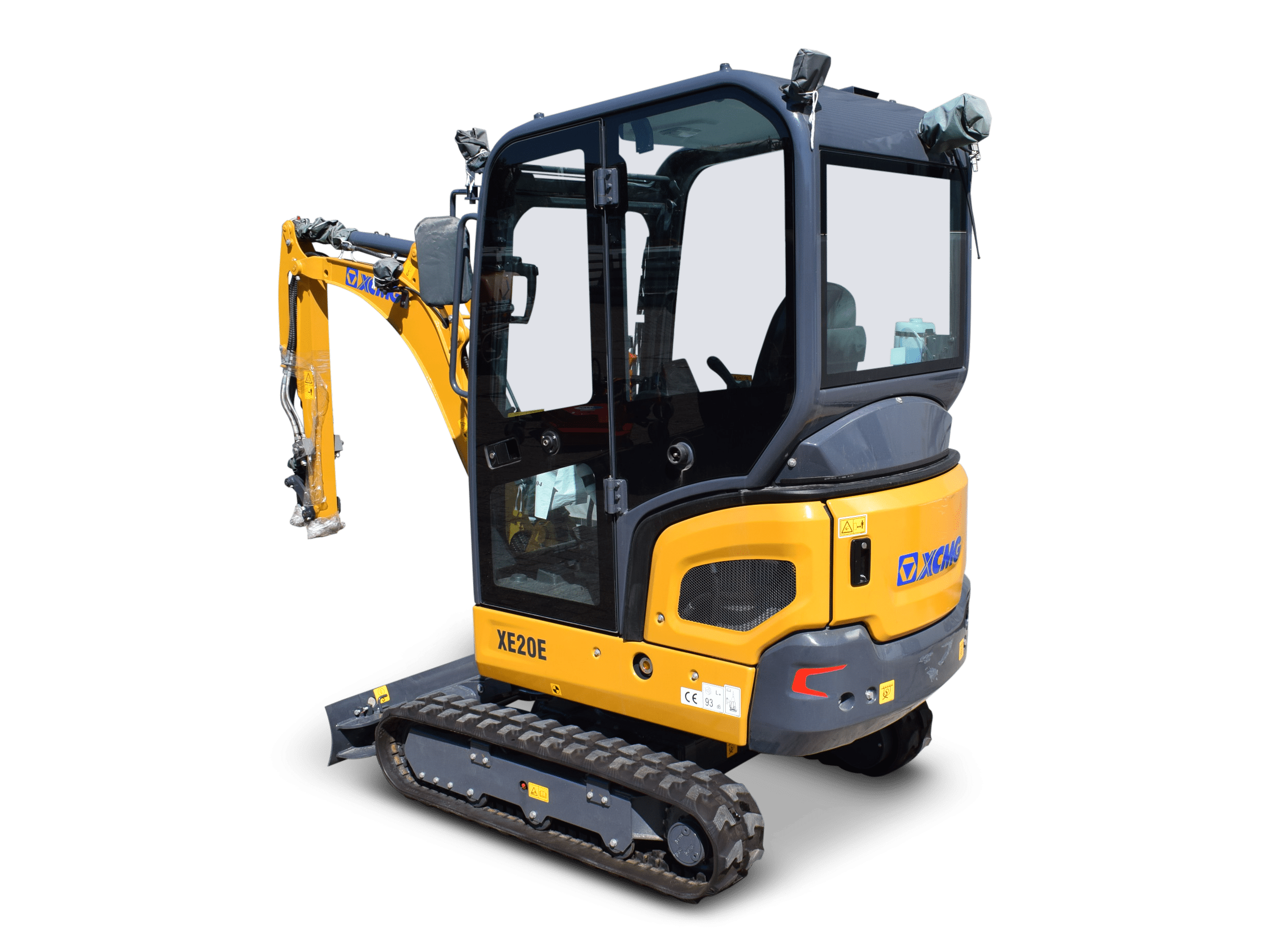

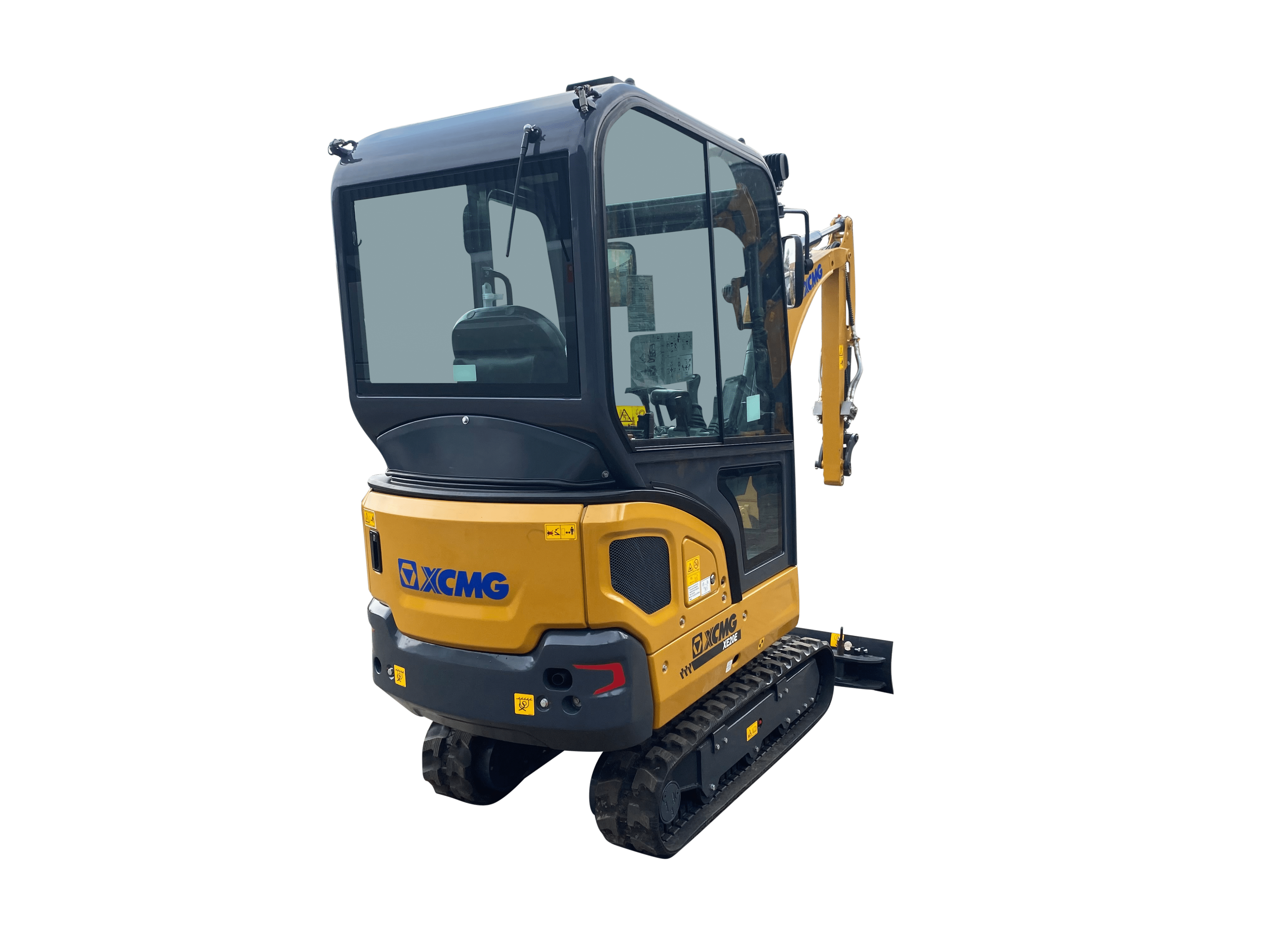

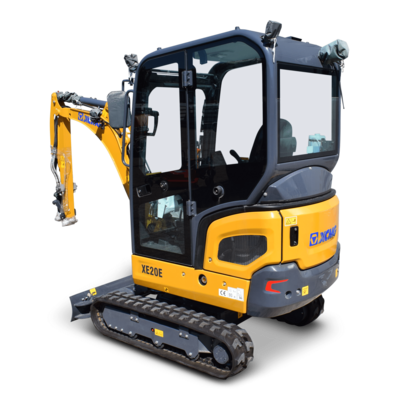

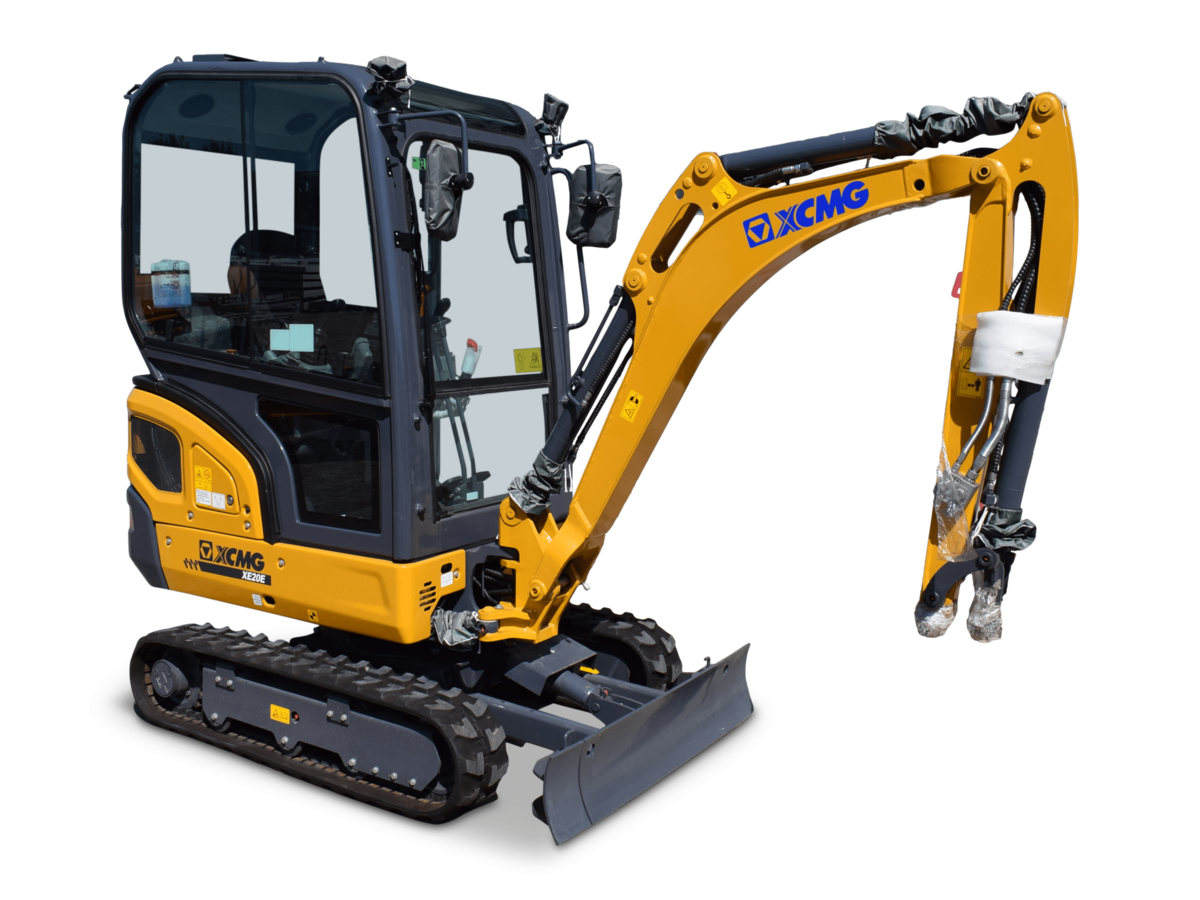

A 2-tonne mini excavator with adjustable track width, such as the XCMG XE20E, offers many advantages for various construction and garden work. The adjustable track width makes the machine ideal for both narrow passages and stability on wider stands, giving flexibility in use.
Key benefits
- Compact and flexible
The adjustable track width provides access to narrow spaces and extra stability on wider settings. - Easy to transport
Weighing 2 tonnes, the XCMG XE20E is easy to transport on a trailer. - Versatile in use
Suitable for excavation, demolition, garden maintenance and earth moving thanks to various attachments. - Stability and safety
Widening of the undercarriage increases stability in heavy-duty tasks, improving precision and safety. - Easy to use and economical

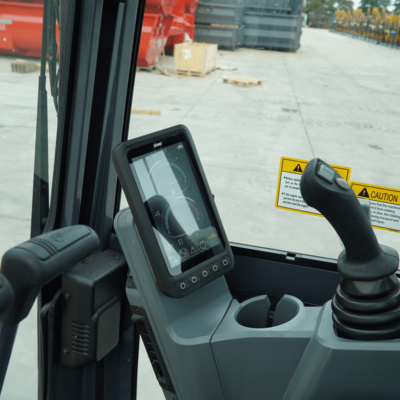

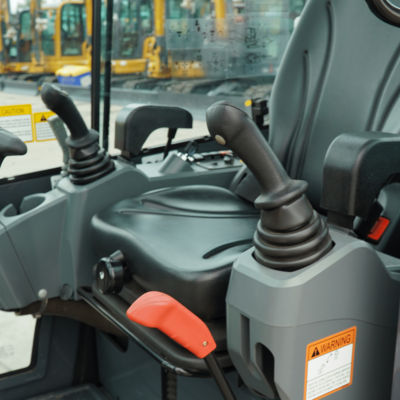

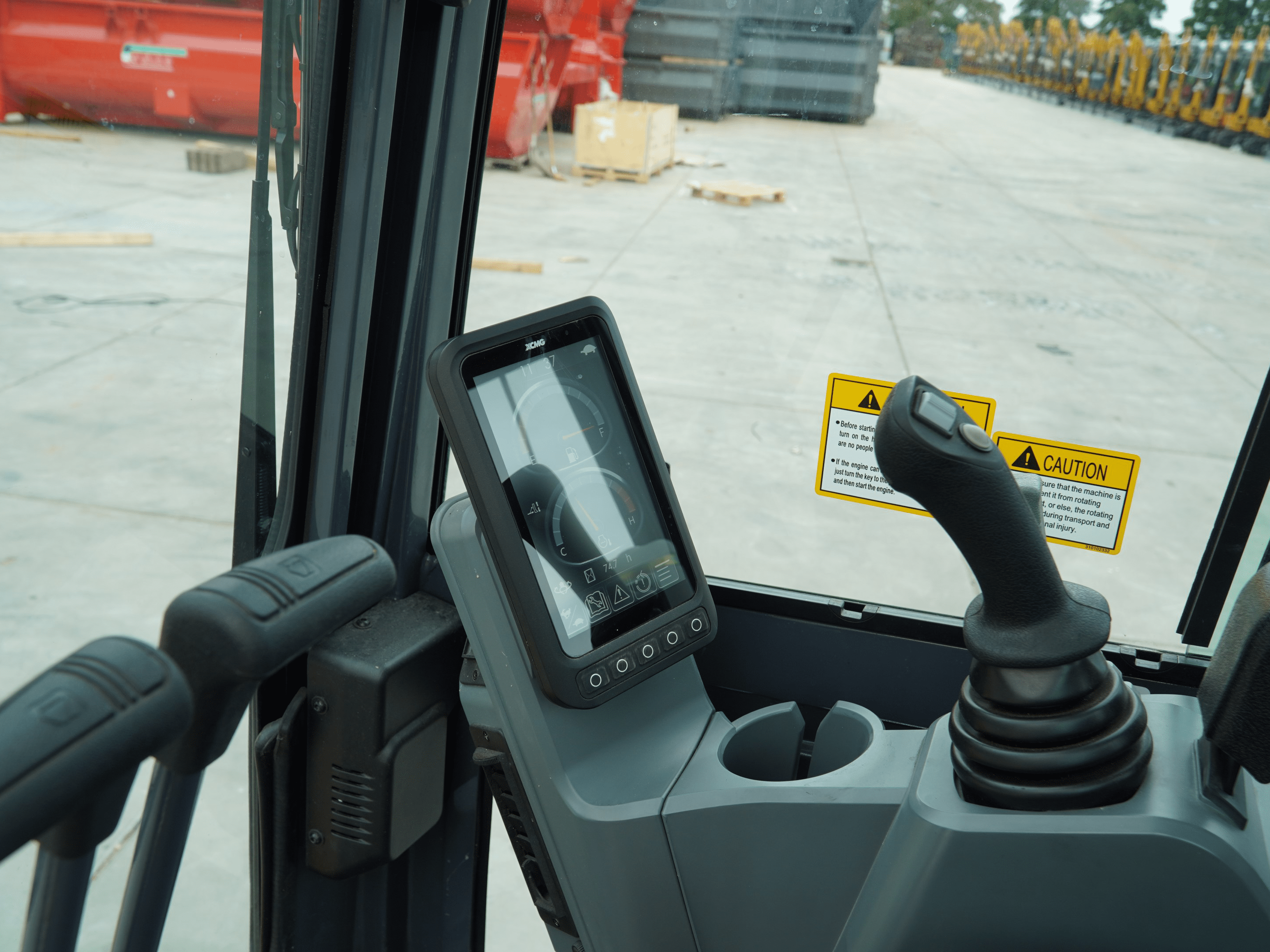

Modern controls and low fuel consumption ensure comfortable and cost-efficient performance.
The XCMG XE20E combines compact dimensions with powerful performance, making it an ideal choice for small to medium-sized projects.
