XCMG XE20E PRO
Fitted as standard with:
- Kubota Stage-V engine
- Hammer function
- Proportionally controlled demolition/sorting function
- Air conditioning
- Rubber tracks
- Dozer blade
- Heated cab with ROPS/TOPS certification
- 7" LCD operating display
- Adjustable auxiliary hydraulics (pressure & flow)
- Extendable undercarriage (990-1300 mm)
- Hydraulic system with variable pump
Downloads
Overall width
1300
Track width
1564
Own weight
2150
Specifications
Dimensions
- 8 ft digging depth with flat floor
- 2140
- Chassis width
- 1300
- Counterweight free space
- 449
- Cradle base
- 1230
- Ground clearance
- 230
- Height of dozer blade
- 260 mm
- Height of tracks
- 346
- Height to top of roof
- 2558
- Max cutting depth of dozer blade
- 230
- Max. Digging depth
- 2140
- Max. Digging height
- 3620
- Max. Tipping height
- 2560
- Max. Vertical digging depth
- 2000
- Max. excavation radius
- 4120
- Maximum lifting height of dozer blade
- 230
- Maximum reach at GRP
- 4070
- Min. forcing radius
- 1520
- Minimum unloading height
- 628
- Overall length with bin
- 3860
- Overall width
- 1300
- Tail swing radius
- 1100
- Track length
- 1564
- Track width
- 1564
- Width of tracks
- 230
- Width of upper structure
- 990
Engine
- Cooling
- Water
Hydraulic system
- Driving system pressure
- 2400
- Main pressure safety valve
- 245
- Main pump output
- 64.4
- Steering pressure
- 35
- Swing system pressure
- 110
Other
- Diesel tank
- 25
- Hydro tank
- 20
Technical specifications
- Arm digging force
- 8
- Ground pressure
- 29.4
- Max traction force
- 14
- Max. Digging force
- 16
- Rotation speed
- 8.5
Weight
- Own weight
- 2150

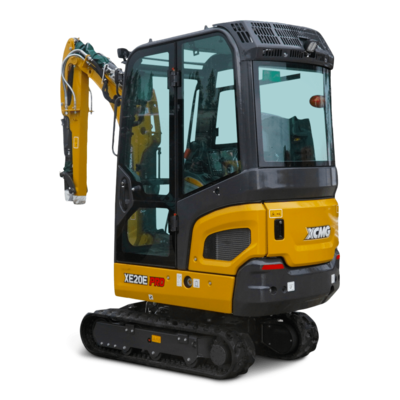

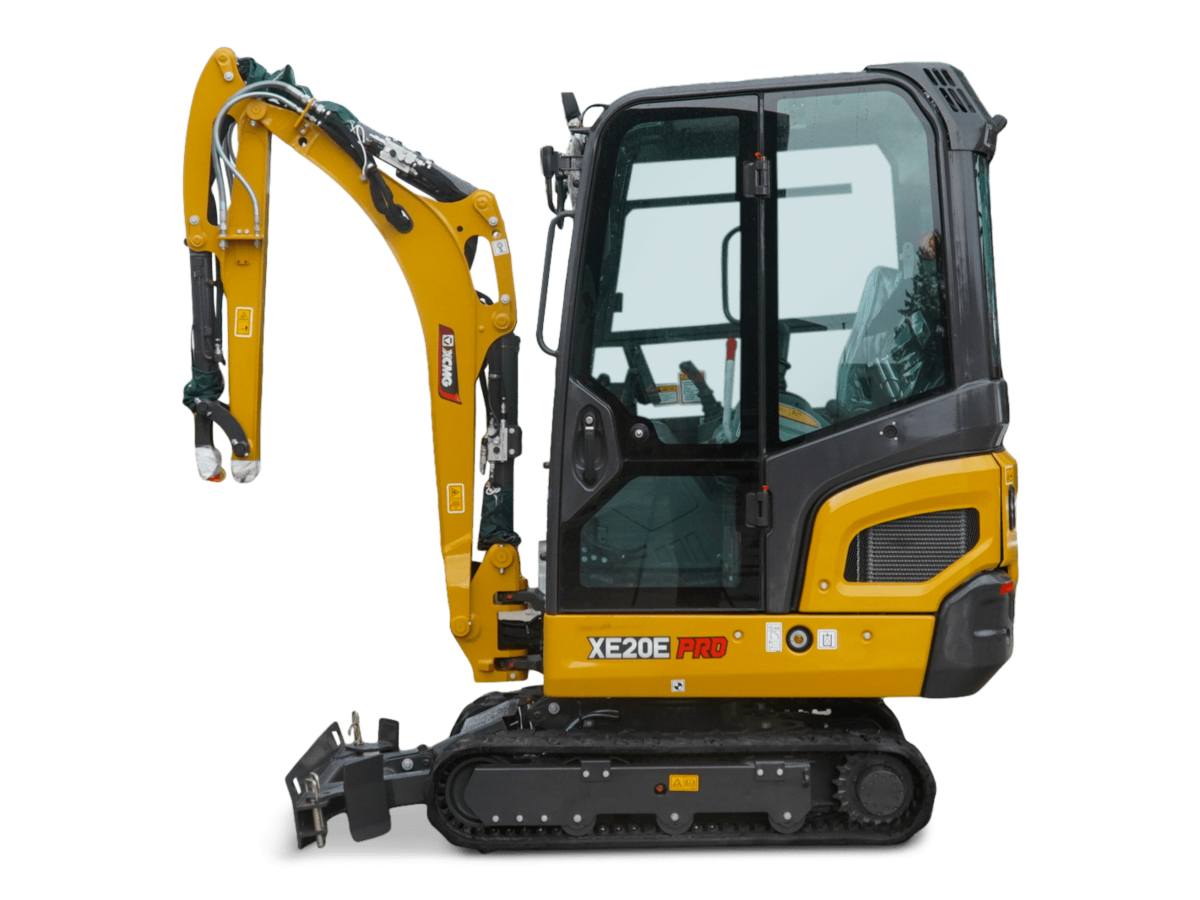

XCMG XE20E PRO mini excavator - Compact powerhouse for professional use
The XCMG XE20E PRO is the mini excavator for professionals who demand performance, comfort and versatility. Equipped with a powerful Kubota Stage-V engine as standard, this compact 2-tonne crawler excavator excels in narrow spaces, without compromising on power or ease of operation. Ideal for contractors, landscapers, contractors and installers.
Applications of the XE20E PRO
- Earthwork and foundations in urban and confined spaces
- Garden and landscaping work
- Cable and pipe laying (including sewer work)
- Small demolition jobs with demolition hammer or sorting grapple
- Work on campsites, stables, farms and yards
Whether you work in construction, infra or green space: the XE20E PRO fits everywhere.
- High performance in a compact format
Thanks to the extendable undercarriage, you work stably on wide terrain as well as in tight situations. - Excellent operator comfort

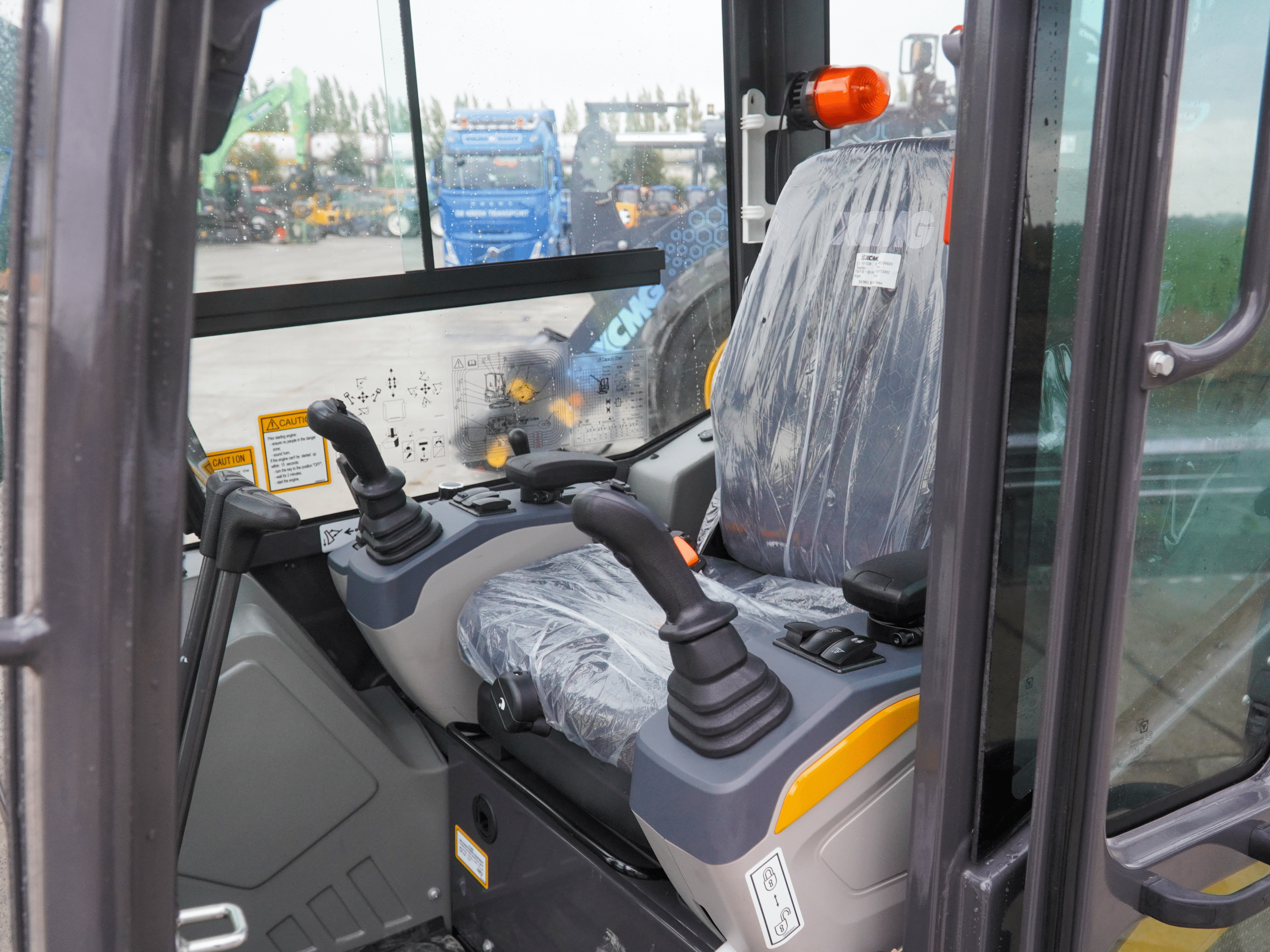

Heated cab, air conditioning and clear LCD display ensure pleasant and safe working hours. - Ready to use attachments
Thanks to adjustable auxiliary hydraulics, the XE20E PRO is ready for demolition hammer, grapple, brush or vibratory plate. - Low emissions, high efficiency
The fuel-efficient Kubota engine meets the stringent Stage-V standard - ideal for inner-city and sustainable work.
Buy XCMG XE20E PRO from Heustractors?
At Heustractors, you choose quality, personal service and fast delivery. We deliver machines like the XE20E PRO complete as standard - no surprises afterwards. Whether you are looking for a single mini excavator or a whole fleet of machines, we think along with you.
- Request a quote today or schedule a viewing with us.
